RAM Mounts Form-Fit Halteschale (mit Schlüsselverriegelung) für Getac ZX10 Rugged Tablet - 5.5mm DC Stromanbindung & USB-A Datenanbindung - AMPS 4-Loch Aufnahme - VESA 75x75 - Schrauben-Set

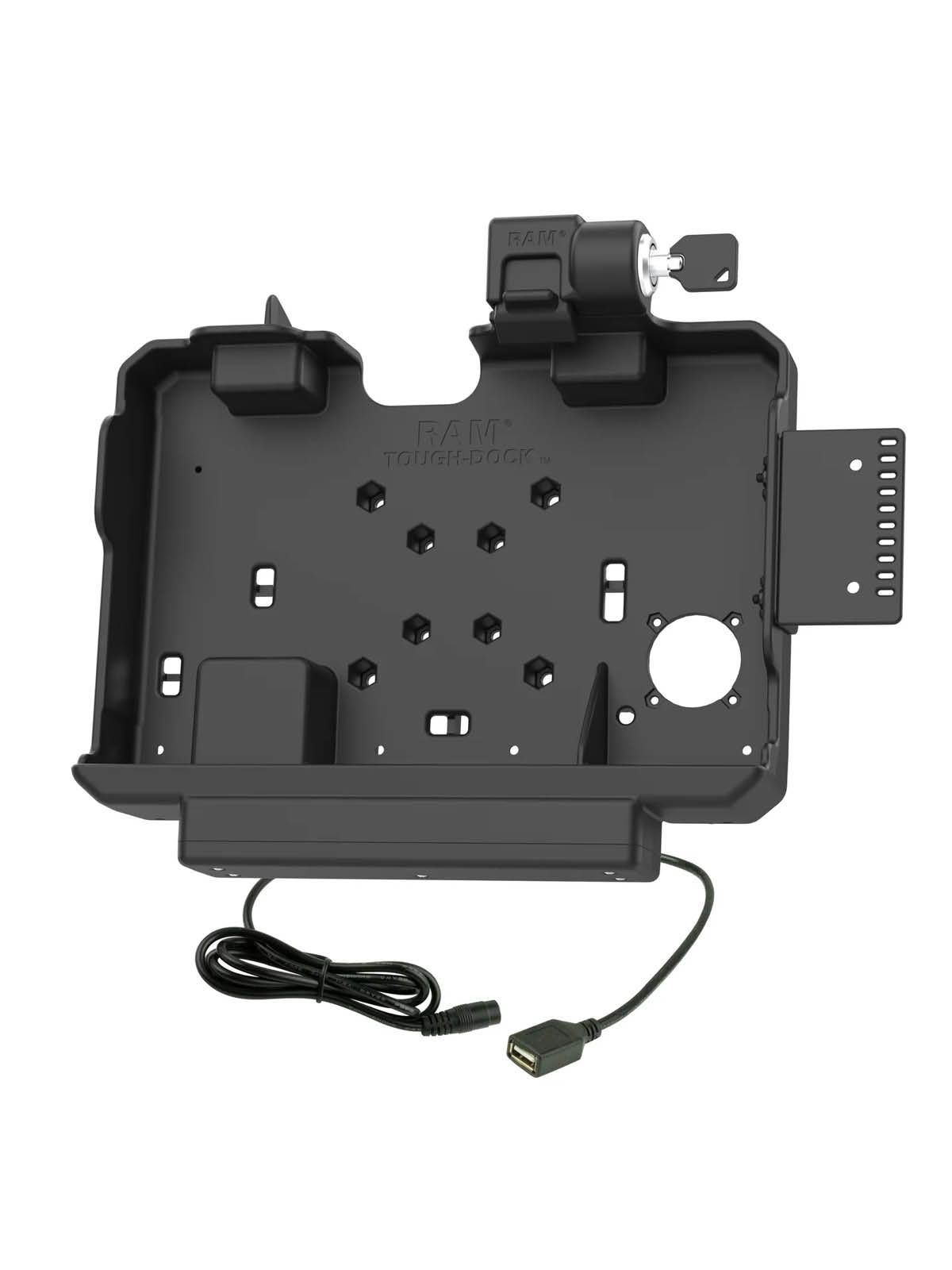

This RAM Mounts Form-Fit (Key-Locking) holder is suitable for the Getac ZX10 rugged tablet.
The holder is powered by a 5.5mm DC connection and charges the device in the dock while peripheral support is provided by the built-in USB Type-A cable.
To insert the device, place the bottom of the device in the cradle and press it into the cradle until it clicks into position.
Tablet accessories such as the optional battery or the multifunctional Getac hard handle can also be used.
The RAM Temp-Right can be added for thermal regulation in extremely cold environments, while the RAM Vent-Temp utilizes the vehicle's vents to direct hot or cold air to the Getac ZX10.
An NFC repeater add-on module can be used to extend the device's internal NFC reader.

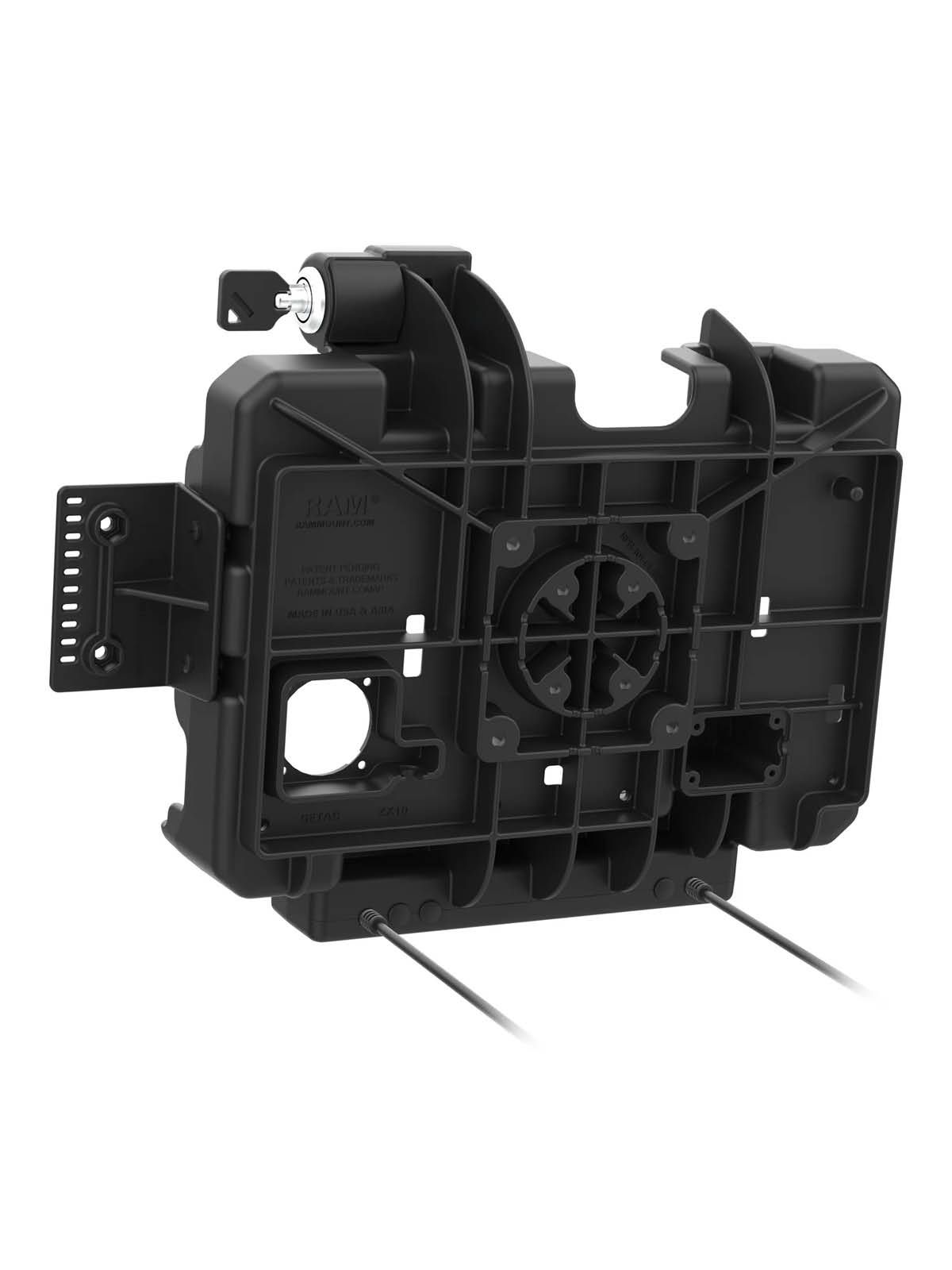

The back of the device holder is prepared to support a VESA 75x75 mm or round ball base (not included).
Product features RAM Mounts RAM-HOL-GE4PDKLU:
- Compatible with the Getac tablet accessoires
- Not compatible with the Getac hand strap accessory
- Easy insertion and removal
- Lockable with key
- Additional mounting plate for attaching additional devices or accessories
- Prepared for RAM Vent-Temp, Temp Right or NFC repeater
- Input Connector: 5.5mm DC-Connector
- Output Connector: USB-A 2.0 (Peripheral output - 500mAh @ 5V)
- Input Voltage: 19V
- Input Cable Length: ca. 100 cm
- Output Cable Length: ca. 24 cm
- Certifications: FCC, IC, CE, UKCA, WEEE & RoHS
Additional information:
This holder will not support the Getac hand strap accessory.
Devices shown are not included in the delivery.
Only the RAM-HOL-GE4PDKLU holder is supplied.
| Hole Pattern: | 75 x 75 VESA |
|---|---|
| Manufacturer: | Getac |
| Mounting: | Schrauben |
| EAN: | 793442016615 |
Compatible
RAM-101U-2461
(410338)
RAM-101U
(410898)
RAM-101U-D
(580059)
RAM-2461-247U-3
(580459)
Compatible Base
RAM-2461U
(410687)
RAM-202U
(410074)
RAM-D-2461U
(410584)
RAM-D-202U
(410307)
Compatible Arms
RAM-201U-B
(410903)
RAM-201U
(410747)
RAM-201U-D
(410648)
RAM-D-201U-C
(410582)
RAM-D-201U
(410306)
RAM-D-201U-E
(410432)
Options
RAM-GDS-CHARGE-V11U
(585959)
RAM-GDS-CHARGE-V12U
(585960)
RAM-GDS-CAB-NFCU
(586400)
RAM-DOCK-HEATER1-BU
(411073)
RAM-VENT1-RCT-50U
(586384)
RAM-VENT1-RND-50U
(586401)
