RAM Mounts Universal Halteschale für elektronische Kleingeräte - Diamond-Anbindung (Trapez), Schrauben-Set, im Polybeutel

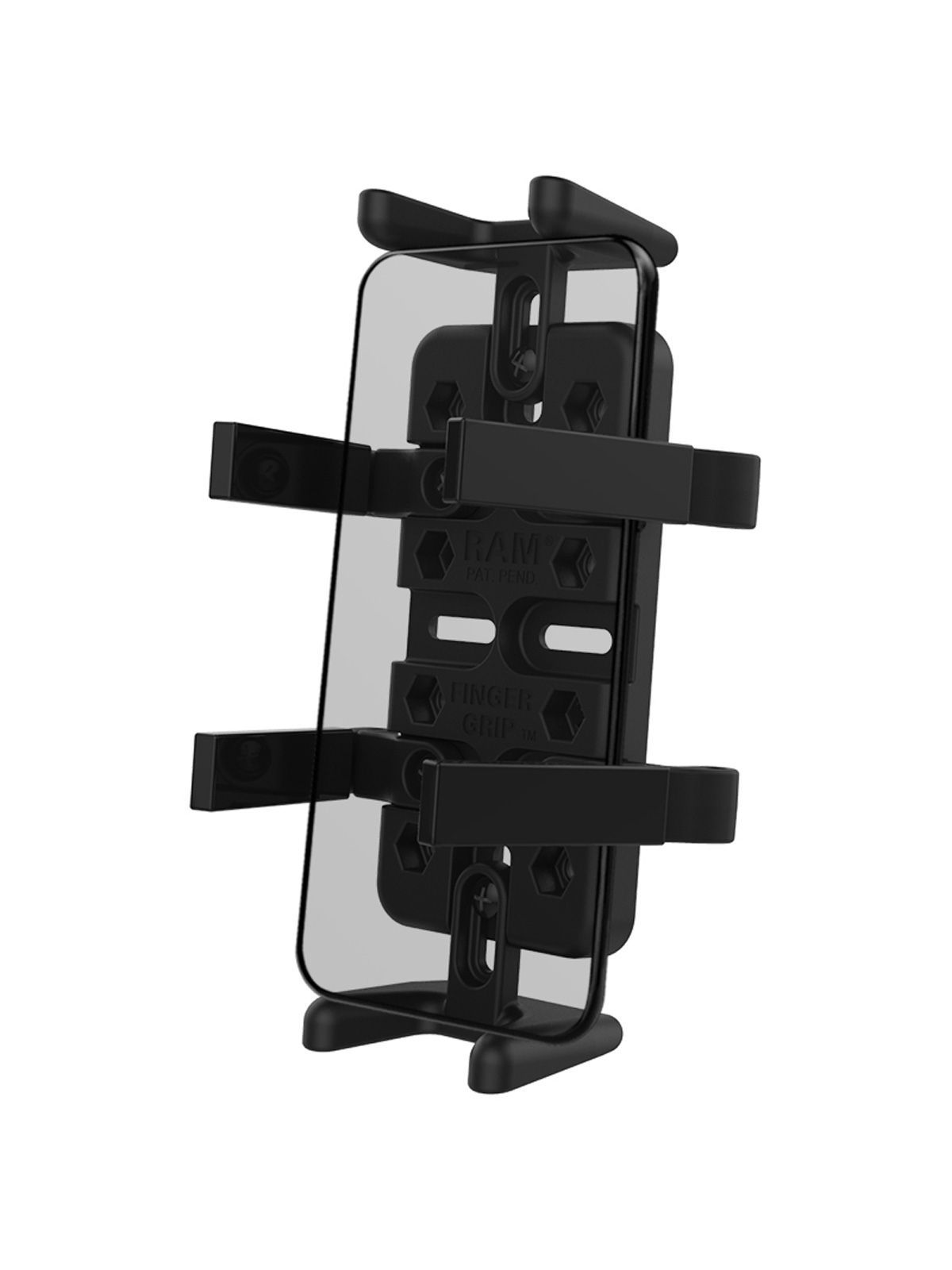

The RAM MOUNT high strength composite universal finger grip holder (RAM-HOL-UN4U) is designed to hold a large amount of cell phones (including the Blackberry) and other electronic devices.

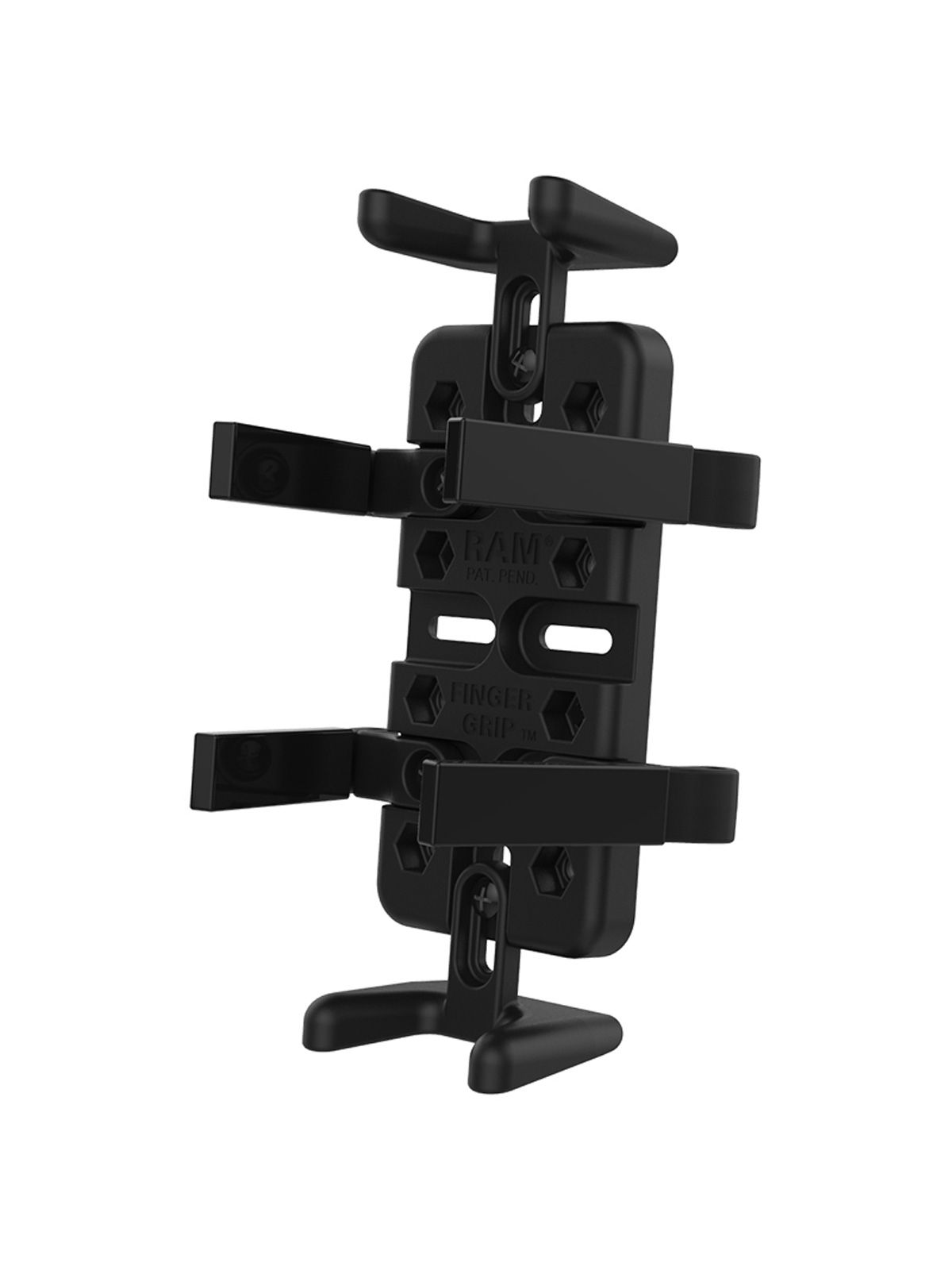

Using the Holder: The holder has four flexible rubber coated fingers placed along sides to grip your device. The fingers open by squeezing the ends to open the small finger arms. The bottom of the holder includes a back plate that adds support to the device being held by the mount.
Height Dimensions:
· Minimum with Top and Bottom Plates: 5.25 Inches*.
· Maximum with Top and Bottom Plates: 6.0 Inches*.
* The top and bottom plates can be removed for larger devices.
Spine Plate Dimensions: 2.5' width x 5.0' height.
Using Short Arm Side Clamps:
· Maximum Depth: 0.75''.
· Minimum Width: 1.25''.
· Maximum Width: 3.0'.
Using Medium Arm Side Clamps:
· Maximum Depth: 1.25''.
· Minimum Width: 1.5''.
· Maximum Width: 3.5''.
Using Long Arm Side Clamps:
· Maximum Depth: 1.6''.
· Minimum Width: 2.25''.
· Maximum Width: 3.5''.
Backside connection: diamond base plate
Material: High Strength Composite
Colour: black

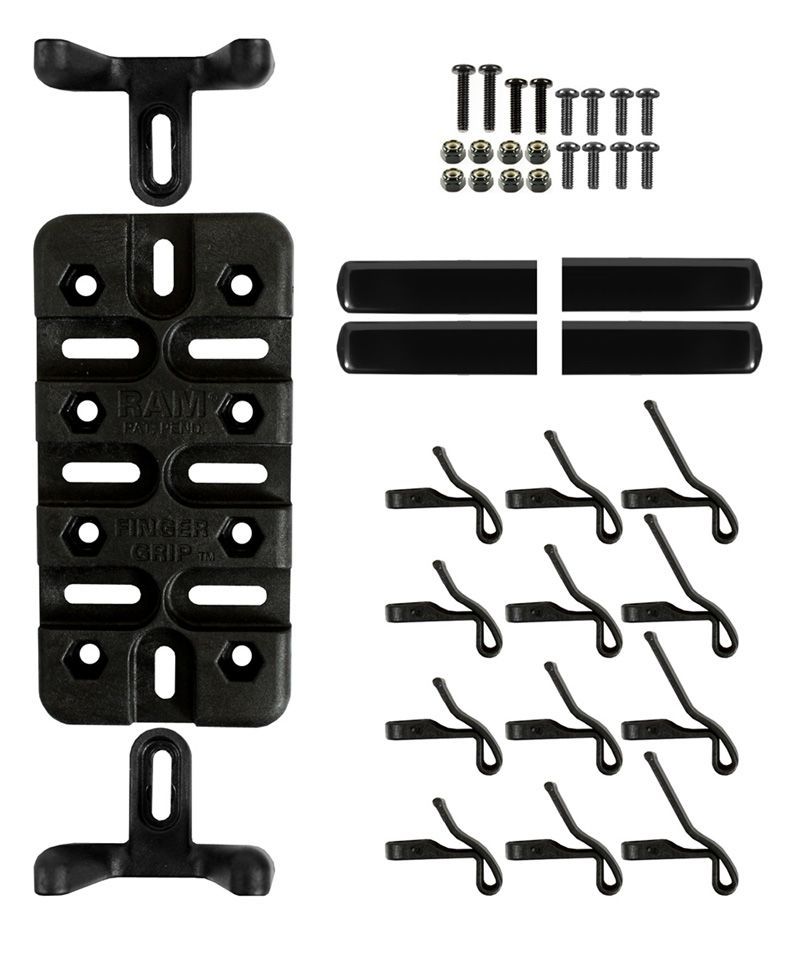

Note: displayed units are not part of the delivery. Delivery includes universal finger grip cradle (RAM-HOL-UN4U) only!
| Hole Pattern: | AMPS 2-Loch |
|---|---|
| Marine: | Gerätehalter |
| EAN: | 793442905575 |
Compatible
RAM-B-238U
(410044)
