RAM Mounts Quick-Grip Pro Holder for Smartphones with Qi2 Wireless Charger - Up to 95.25 mm Width - Mag-Safe Compatible - With Diamond Base (B-Size - 1“)

The RAM Mounts Quick-Grip Pro Universal Holder with a B-Ball base and a Qi2 Wireless Charger is a rugged and versatile solution for securely mounting smartphones of various sizes.
Adjustable side arms with a soft rubber coating provide added protection and a firm grip.
In addition, the Quick-Grip Pro features an integrated cavity for an Apple MagSafe Charger, allowing the holder to be transformed into a wireless charging solution.

This holder is ideal for use on motorcycles, bicycles, in cars, boats, or other mobile applications.
The included tether offers extra security in especially demanding environments such as off-road rides.

The open design ensures full access to all buttons and ports.
Thanks to the integrated spring mechanism, the device can be inserted and removed quickly and easily.
Inserting and removing the phone can be done with just one hand.
The Quick-Grip Pro is compatible with a wide range of RAM Mounts components and can be seamlessly integrated into existing mounting systems.

The back of the Quick-Grip Pro is prepared with a Diamond Base (B-Size).

Product features RAM Mounts RAM-HOL-PD5B-W2MU:

• Universal fit for many smartphones

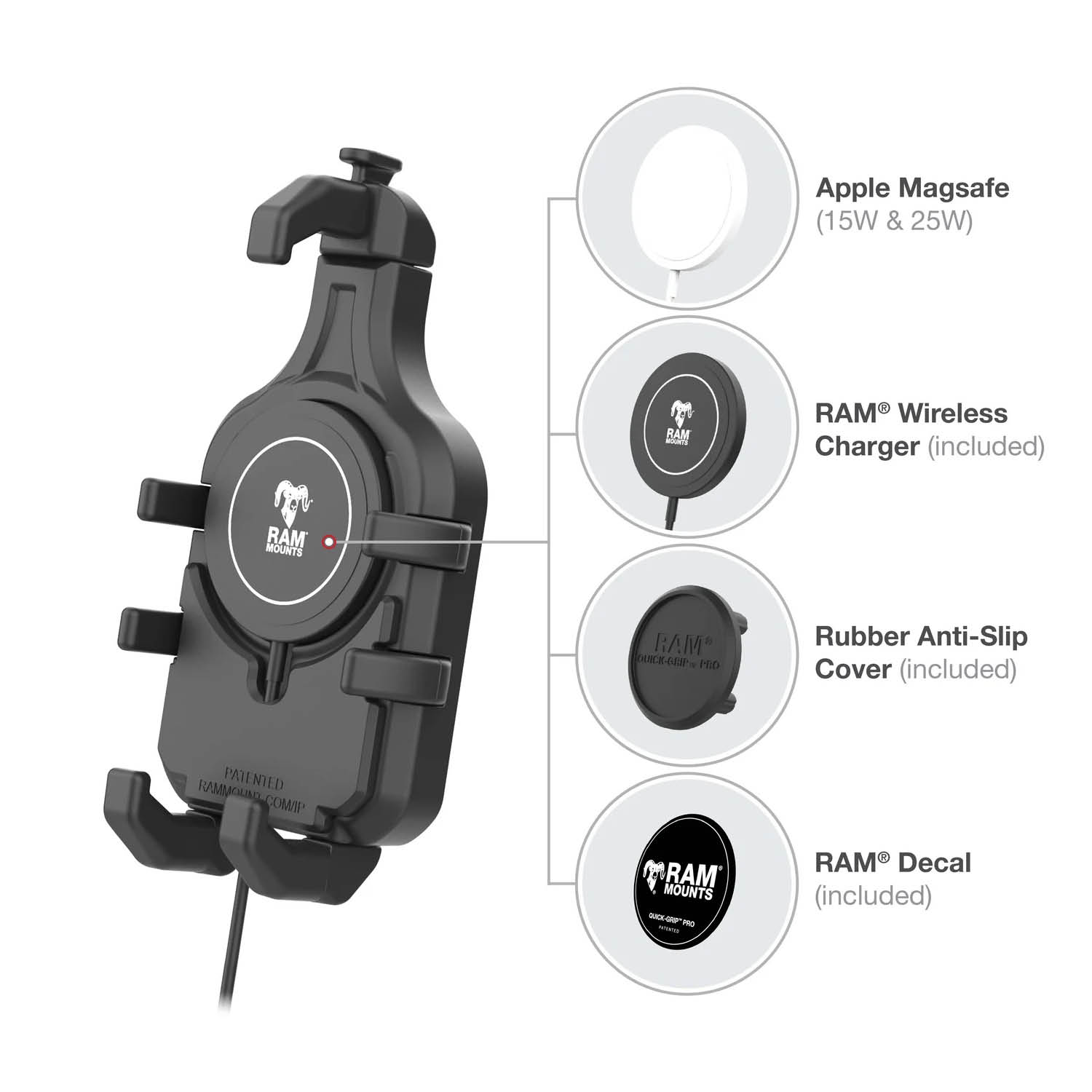

• Includes RAM Qi2 Wireless Charger
• Connector: USB-C plug with USB-A adapter
• Cable Length: ca. 100 cm
• Integrated cavity for Apple MagSafe (15W & 25W)
• Secure grip
• Quick insertion and removal
• Full access to ports and buttons
• Includes safety tether
• Weight capacity for standard use up to 0.91 kg
• Weight capacity for heavy-duty use up to 0.45 kg

Power Specifications:

• Operating Frequency: 360 kHz
• Stand-by Consumption: ~ 0.008 A / 8 mA at 5V DC
• 80% Wireless Power Transfer Efficiency or Greater
• Supports USB 2.0 BC1.2 power supply (5V)
• Supports Qualcomm QC 2.0 and USB PD 2.0

Input Voltage:

• USB: 5 V @ 3A
• QC 2.0: 9 V @ 2.22A
• USB PD 2.0: 5-15V @ 2A

Power Output:

• BPP: 5 W
• EPP: 7.5 W
• MPP: 15 W

Compatible with smartphones with the following dimensions:

• Height: 139.7 mm - 196.85 mm
• Width: 66.68 mm - 95.25 mm
• Maximum depth: 17.02 mm

Protection Features: Overcurrent protection, Short-circuit protection, Over-temperature protection, RoHS compliant & WEEE compliant

Certifications: IP67, SAE J1455, FCC, CE, E-Mark & RCM

Additional informations:
Top hook may block front facing camera and facial recognition on select phones.

Exposure to vibrations, such as those produced by high-performance motorcycles, may affect the functionality of iPhone cameras.
The included wireless charger will support up to 8mm charging distance between puck and device.

Devices shown are not included in the delivery.
Only the RAM-HOL-PD5B-W2MU Set is supplied.
