RAM Mounts GDS Fahrzeug-Ladestation für Apple iPhone 16 mit Aina PTT Vorrichtung - C-Kugel (1,5 Zoll), 4-Loch AMPS

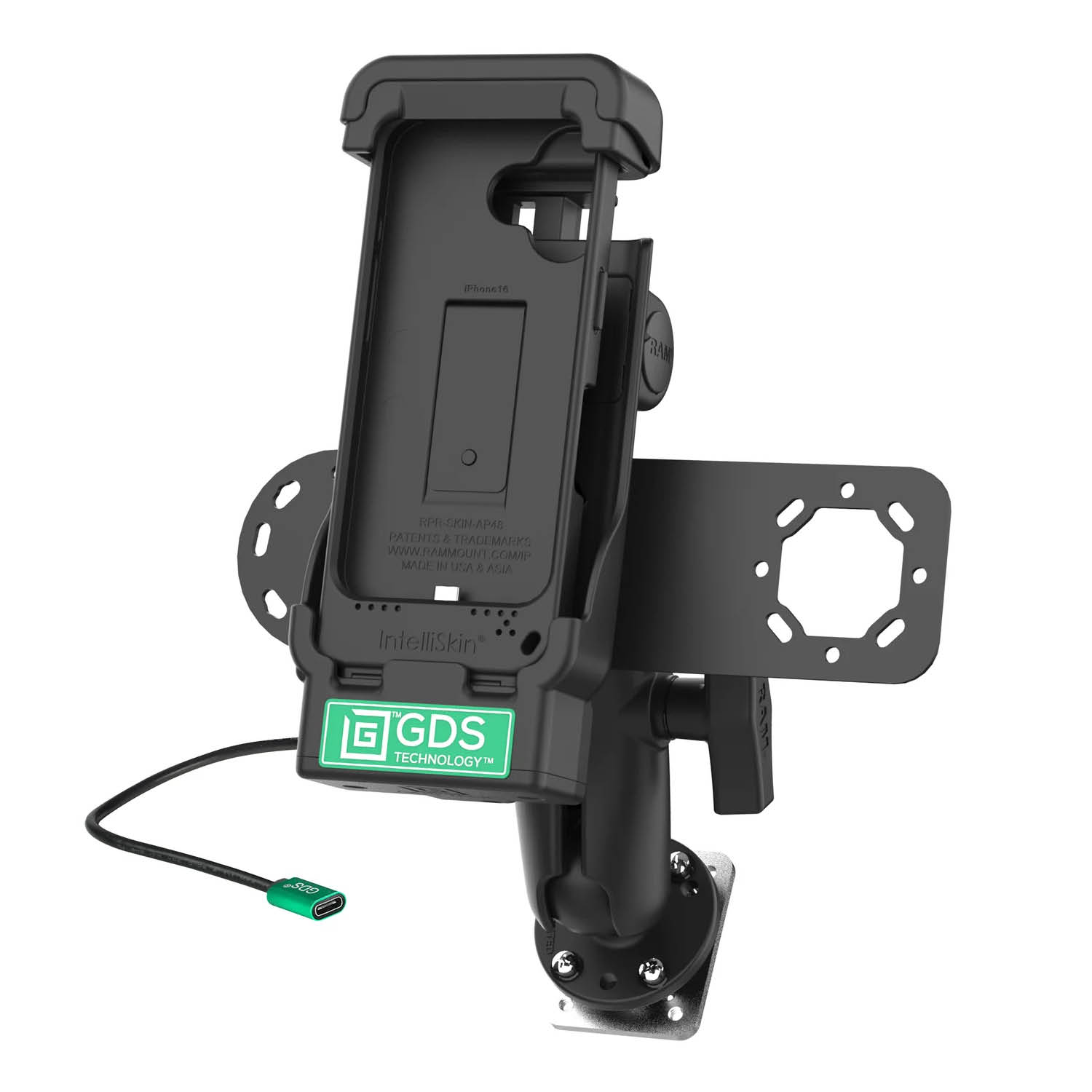

The GDS® Aina PTT Voice Responder Vehicle Bundle for iPhone 16 (RAM-GDS-V15-SAM84-PTT1) is a rugged, all-in-one Push-To-Talk (PTT) mounting solution designed to seamlessly integrate the iPhone 16 into mission-critical workflows.

Ideal for field operations, public safety, and fleet management, this bundle includes a GDS® Dock™, IntelliSkin® for the Apple iPhone 16, microphone bracket, two hardwire chargers, SAE splitter, and double ball mount with backing plate for secure in-vehicle installation. The dock features a USB Type-C female power connector for direct connection to the hardwire charger, while the AINA Vehicle Charging Cradle connects plugs directly into the second hardwire charger for power. Bluetooth-enabled Push-To-Talk communication is supported exclusively through AINA's Voice Responder Remote Speaker Microphone (RSM), offering reliable wireless connectivity in demanding environments.

Integrated pogo pins on the dock provide consistent power to the IntelliSkin®-protected device, ensuring optimal uptime and device readiness. This PTT bundle is optimized for use with ESChat and Zello, making it a powerful communication hub for modern mobile teams. Please note, this kit's IntelliSkin® is only compatible with the iPhone 16 and is not compatible with the iPhone 16 Pro, iPhone 16 Pro Max, or iPhone 16 Plus. Always Protected. Always Connected.®

Features

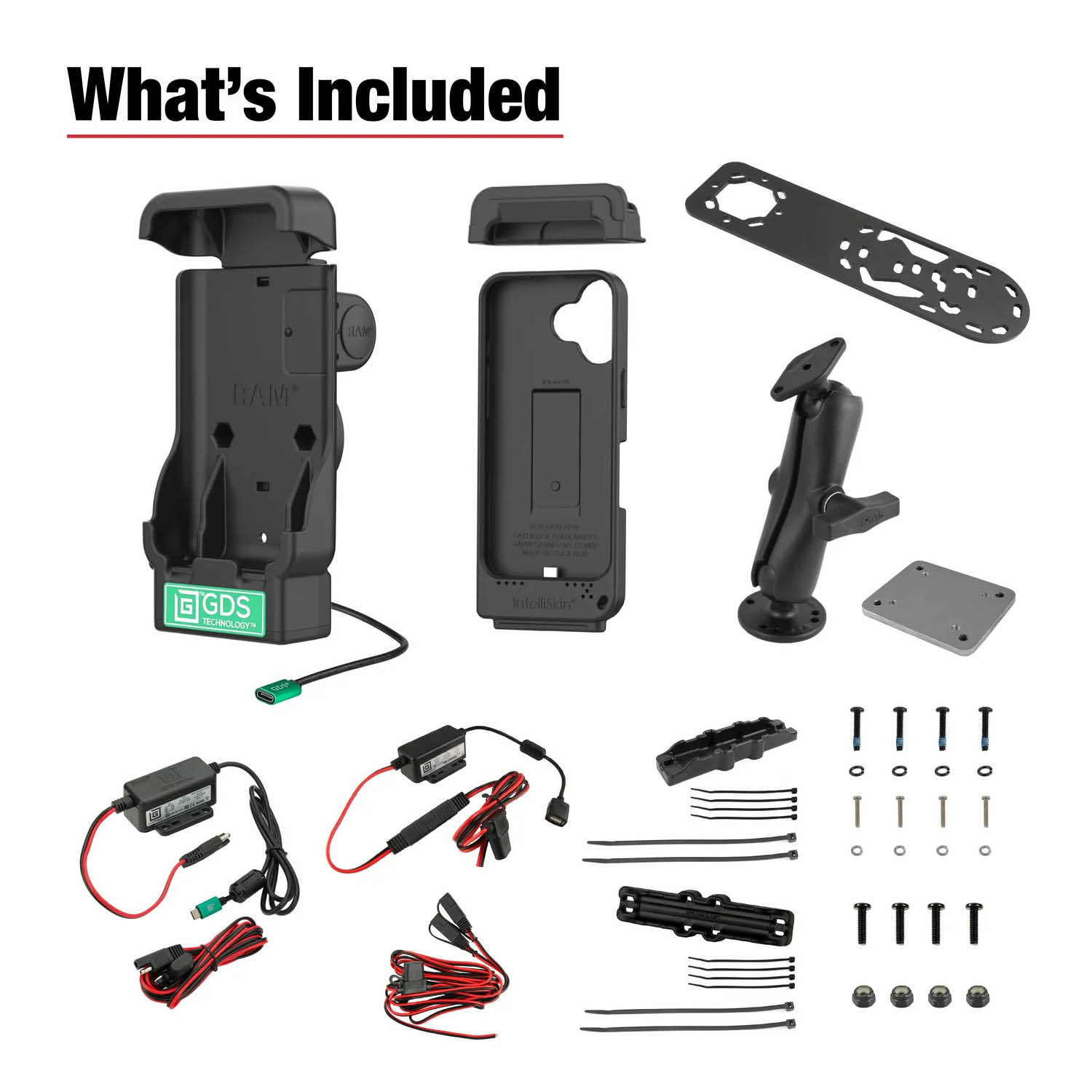

• Bundle includes GDS® Dock™, IntelliSkin® for the Apple iPhone 16, microphone bracket, two hardwire chargers, SAE splitter, and double ball mount with backing plate
• Dock features GDS® Technology™ for charging capabilities; USB-C port connects to power
• AINA's Voice Responder RSM and Vehicle Cradle recommended for bluetooth PTT
• Made of high-strength composites for durability and reliability in the most demanding environments

Socket to socket length - 4.66"

Hole pattern - 4-Hole AMPS 1.181" x 1.496"

Ball size - C Size (1.5")

Material(s) - Steel, Marine-grade aluminum, High strength composite

Input voltage - 10-30 VDC (both Chargers)

Output voltage - USB-C Charger 5-15 VDC @ 3A, USB-A Charger 5-9 VDC @ 2.5A

Input connector - bare wire (via SAE splitter)

Output connector - USB-C for GDS® Dock, USB-A for Aina PTT Voice Responder

Regulatory - Over Voltage Protection, Short Circuit Protection, Reverse Polarity Protection, RoHS Compliance, WEEE Compliance, SAE J-1113-5 Load Dump (Transient Voltage), Moisture Resistant

Certifications - CE, RCM, FCC, UL 62368-1
