RAM Mounts GDS Form-Fit Holder (Key-Locking) for Zebra ET40 & ET45 (8") Tablets in IntelliSkin Protective Sleeve - USB-C & Dual USB-A Connector €414.95*

RAM Mounts GDS Form-Fit Holder (Key-Locking) for Zebra ET40 & ET45 (8") Tablets in IntelliSkin Protective Sleeve - USB-C & Dual USB-A Connector

€414.95

Available, delivery time: 1-2 Working days

Product number: RAM-GDS-DOCKL-ZE20PD2U

Product catalogue: Zebra Catalog 2023 EN

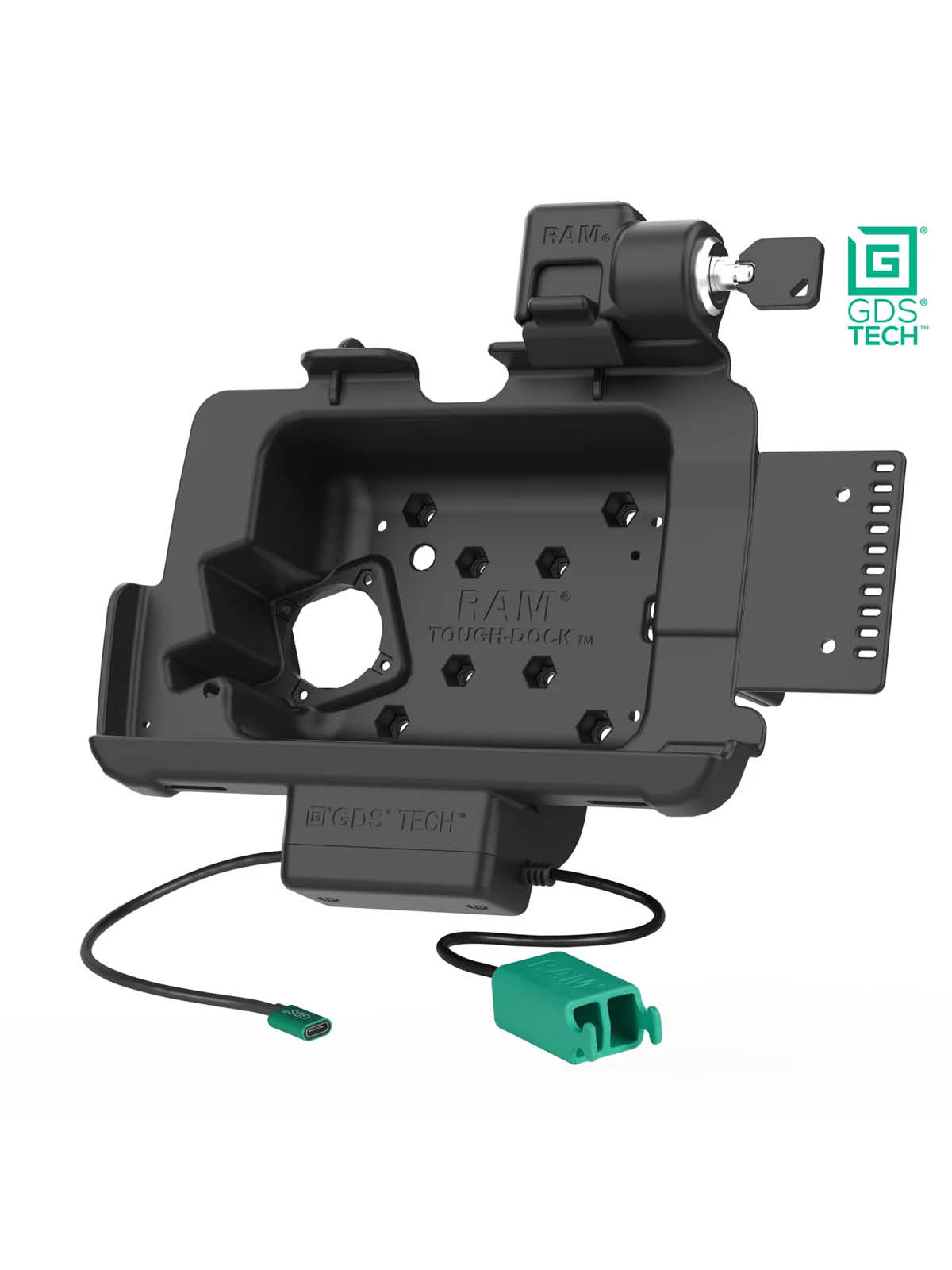

This RAM Mounts GDS Form-Fit (Key-Locking) holder is suitable for Zebra ET4x 8“ series with IntelliSkin Next Generation protective sleeve.
The holder is powered by a USB-C port and charges the device in the dock while peripheral support is provided by the built-in dual USB Type-A cable.

To insert the device, place the bottom of the device in the cradle and press it into the cradle until it clicks into position.
The cut-outs on the buttons and ports allow you to continue using them without any problems.

The cradle also allows the tablet's scanning function to continue to be used because of the cutout at the back.
Tablet accessories such as PowerPack batteries can also be stored inside.

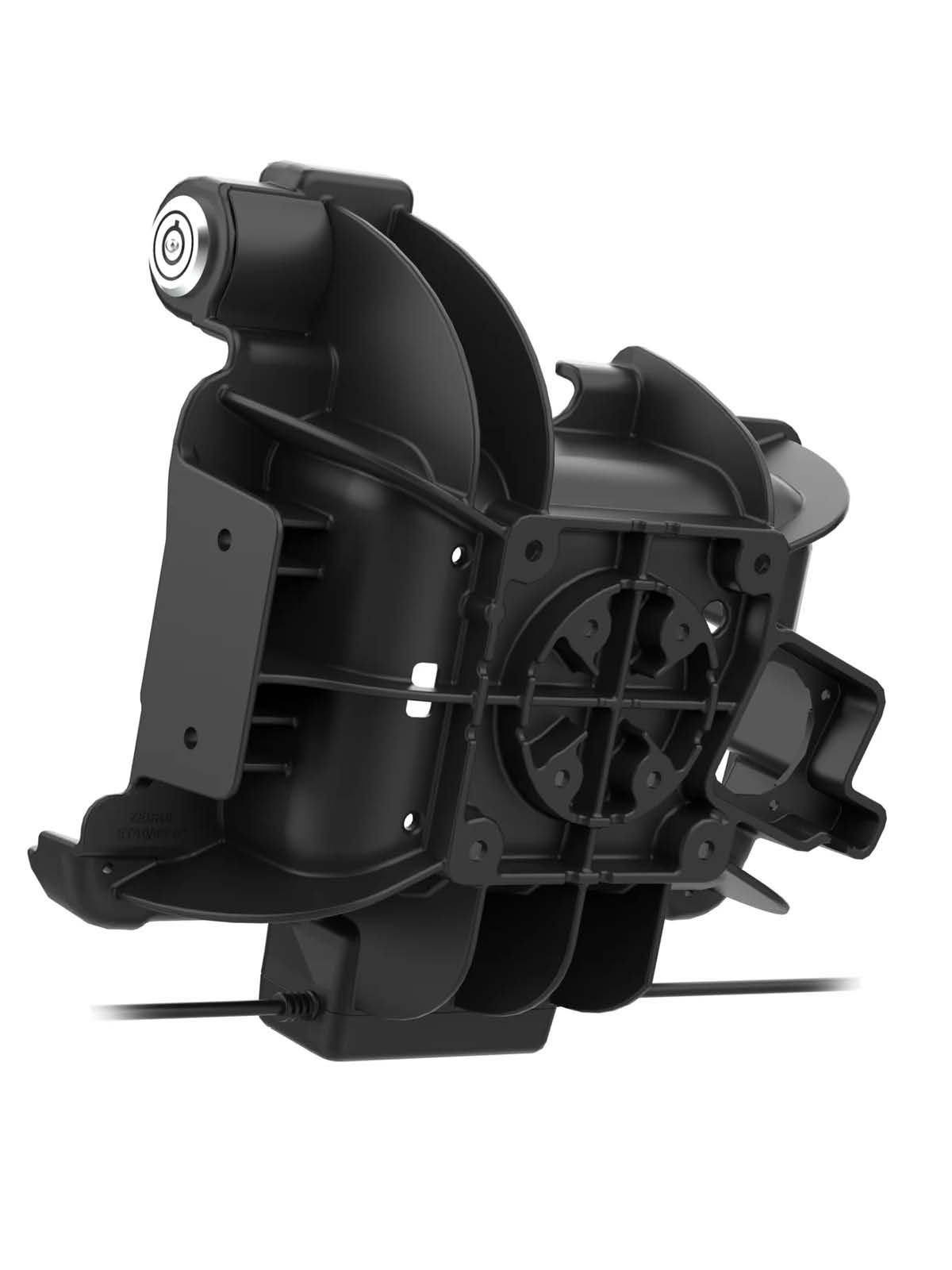

The back of the device holder is prepared to support a VESA 75x75 mm or round ball base (not included).

Product features RAM Mounts RAM-GDS-DOCKL-ZE20PD2U:

Compatible with PowerPack batterie
Easy insertion and removal
Additional mounting plate for attaching additional devices or accessories
Can only be used with IntelliSkin Next Generation protective sleeve
Lockable with Keys
Input Connector: USB-C
Power Output: 60W
Output Voltage: 5-20V @ 3A
Output Connector: 2x USB-A 2.0 (Peripheral output - 900mAh per Port)
Transfer Speed: 12Mbps
Input Cable Length: ca. 21 cm
Output Cable Length: ca. 21 cm
Certifications: RoHS, WEEE, CE & UKCA

Additional information:
To use the holder you need the RAM-GDS-SKIN-ZE20C-NG protective sleeve.

Devices shown are not included in the delivery.

Only the RAM-GDS-DOCKL-ZE20PD2U holder is supplied.

Hersteller:	National Products Inc.- 8410 Dallas Avenue South, Seattle, WA 98108, USA, www.rammount.com
Hole Pattern:	AMPS 4-Loch & VESA 75x75
Importer:	RAM Mounts Germany GmbH, Alexander-Meißner-Str. 42, 12526 Berlin, www.rammounts.de, Telephone: 030-917471-70
Manufacturer:	Zebra
Mounting:	Schrauben
Responsible:	GF Kostja Dümke, info@rammounts.de, 030-917471-70
Warnhinweis:	Plastiktüten von Kindern fernhalten - Erstickungsgefahr! Keep plastic bags away from children – danger of suffocation!
Zebra Rugged PC:	ET4x 8 Zoll
EAN:	793442202568
