RAM Mounts X-Grip Schwanenhals-Halterung für 9-11 Zoll Tablets - Runde Basiskugel - 18 Zoll Aluminium Schwanenhals - Pod-Basis (Fahrzeugsitz - Ohne Bohren) - B-Kugel (1 Zoll) - Schrauben-Set
B-Kugel

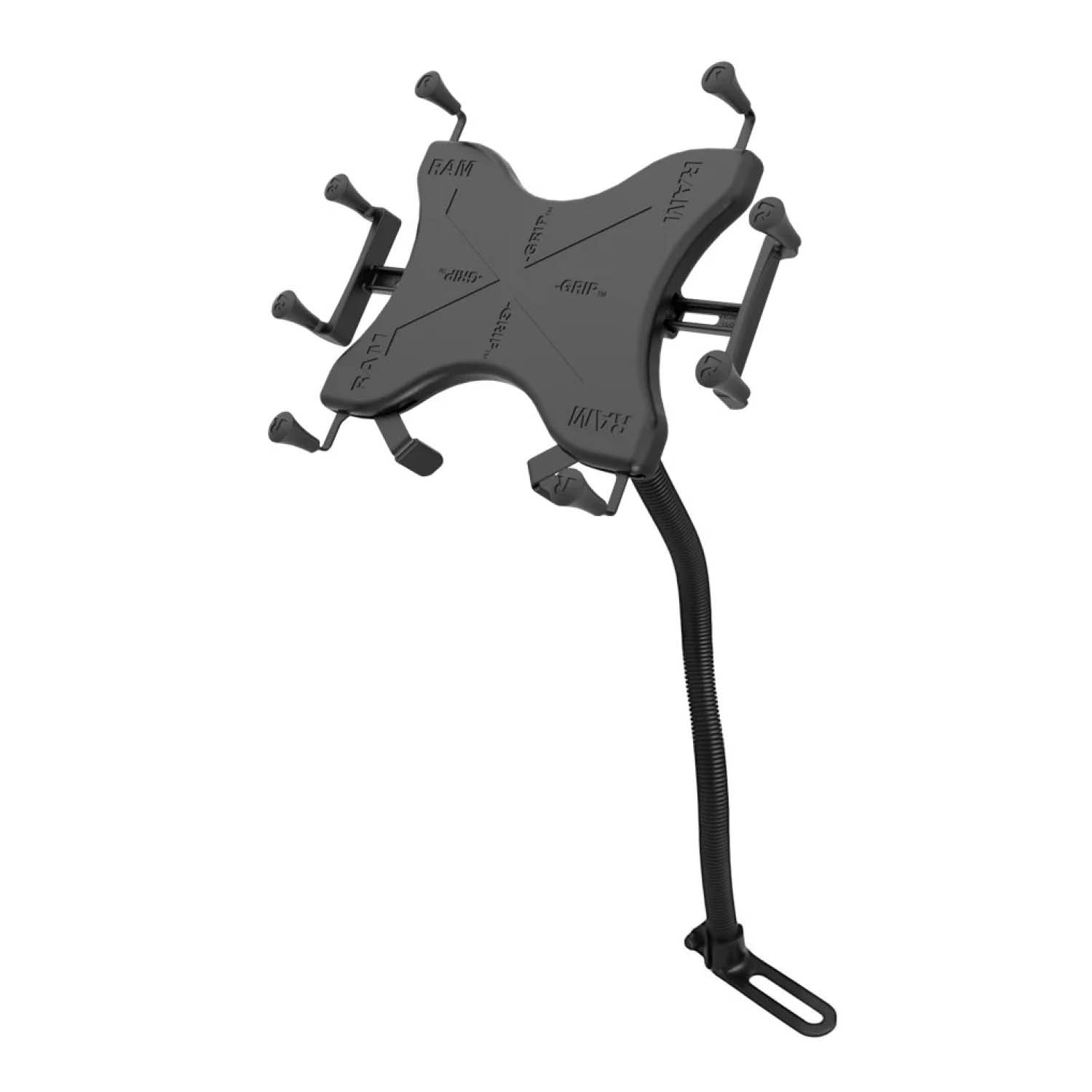

The RAM Mounts X-Grip universal mounting set is a rugged and versatile solution for securely holding tablets of various sizes.
It combines the X-Grip holder with a round base ball (B-size ball, 1“), a 18“ aluminum rod and a pod base for seat rails and making it suitable for a wide range of applications.
The X-shaped, spring-loaded cradle with rubber-coated end caps ensures a reliable grip without limiting access to the device.
Thanks to its open design, all buttons, ports, and the camera remain fully accessible.
The integrated spring mechanism allows for quick and easy insertion and removal of the tablet.
This mounting solution is ideal for both mobile and stationary applications across various environments.
Product features RAM Mounts RAM-B-316-1-UN9:
- Complete set with X-Grip holder
- No Drill necessary
- Universal fit for many tablets
- Secure hold
- Quick insertion and removal
- Full access to ports and camera
- Optional side supports
- Weight capacity for standard use up to 0.91 kg
- Weight capacity for heavy-duty use 0.45 kg

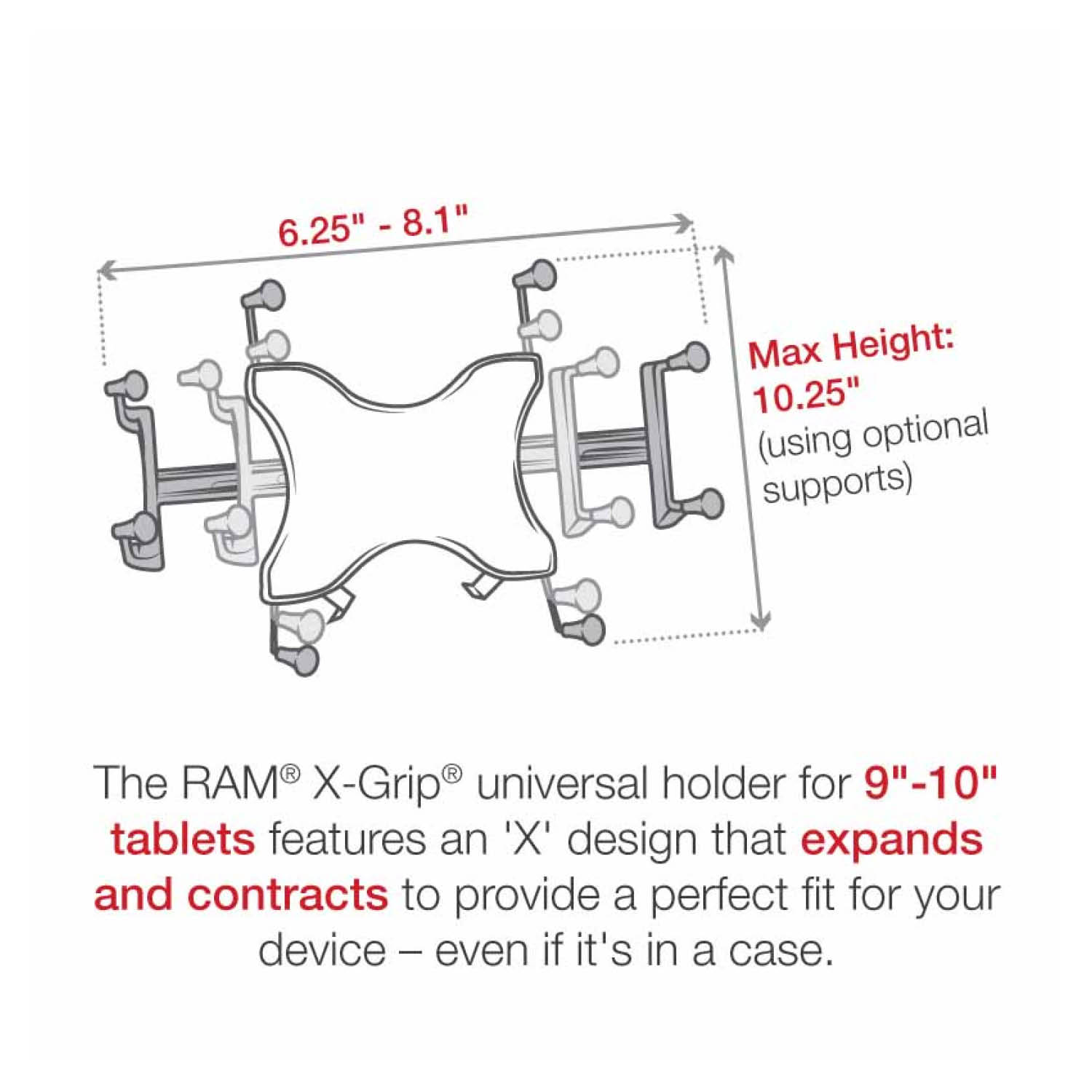

Compatible with tablets with the following dimensions:
- Maximum height: 260.35 mm (using optional side supports)
- Minimum width: 158.75 mm
- Maximum width: 205.74 mm
- Maximum depth: 22.225 mm
Additional information:
Devices shown are not included in the delivery.
Only the RAM-B-316-1-UN9 set is supplied.
| Ball Size: | B-Kugel (1 Zoll bis 0.9 kg) |
|---|---|
| Hersteller: | National Products Inc.- 8410 Dallas Avenue South, Seattle, WA 98108, USA, www.rammount.com |
| Mounting: | Sitzschiene |
| Verantwortlich: | GF Kostja Dümke, info@rammounts.de, 030-917471-70 |
| Importeur: | RAM Mounts Germany GmbH, Alexander-Meißner-Str. 42, 12526 Berlin, www.rammounts.de, Telefon: 030-917471-70 |
| Warnhinweis: | Plastiktüten von Kindern fernhalten - Erstickungsgefahr! |
| EAN: | 793442938627 |
Components
RAM-HOL-UN9U
(410351)
RAM-B-316-1-202U
(581956)
Options
RAM-HAR-XG1U
(586538)
