RAM Mounts Tab-Tite Mounting Kit for Tablets up to 8“ (With Cases) - B-Size (1") with Backing Plate - 2x Round Base Plates (AMPS) - Medium Double Socket Arm (ca. 94.74 mm)
€121.95
Available, delivery time: appr. 1-2 Working days

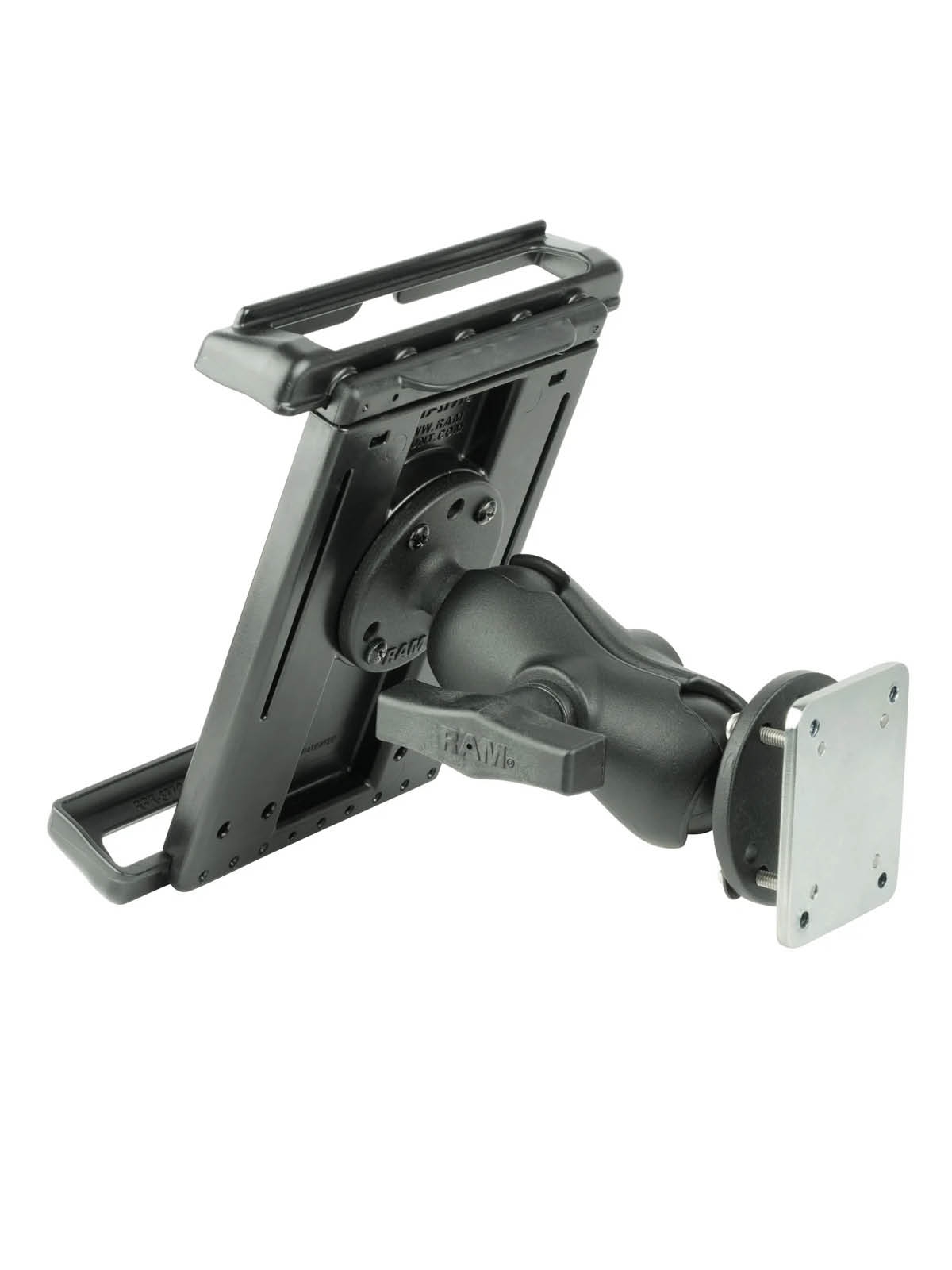

The RAM Mounts RAM-B-101B2-TAB12U Mounting Kit consists of a Tab-Tite holder for tablets up to 8“ (with cases), a medium double socket arm, two round base plates with AMPS hole pattern and a steel backing plate.
Thanks to the AMPS hole pattern, the set is compatible with numerous other RAM Mounts device cradles.
It can be mounted flexibly and securely on almost any vertical or horizontal surface.
Thanks to the ball-and-socket system, the mount can be adjusted flexibly, providing perfect viewing and operating angles.
The robust construction made of powder-coated aluminum ensures long-lasting durability even under tough conditions.
With a load capacity of up to 0.91 kg, the set is ideal for use in vehicles, boats, industry, or logistics.
Perfect for securely mounting tablets.
Product features RAM Mounts RAM-B-101B2-TAB12U:
- Spring-loaded design for easy insertion and removal
- Full access to all device interfaces on most models
- Material: Powder-coated aluminium & High strength composite
- Overall Dimension: ca. 127 mm
- Ball Diameter: 25.4 mm (1“ - B-Size Ball)
- Backing Plate Dimensions: 5.33 x 6.60 cm hole pattern (7.62 x 7.62 cm plate size)
- Base Plate Dimensions: 63.5 mm Diameter (4-Hole AMPS & 3-Hole 120-Degree)
- Double Socket Arm Dimensions: ca. 94.74 mm Overall Length - 76.2 mm Socket-To-Socket
- Weight capacity for standard use up to 0.91 kg
- Weight capacity for heavy-duty use 0.45 kg
- Weight: ca. 617 g
Compatible for tablets with the following dimensions:
- Height: 180.97 mm up to 241.3 mm
- Width: 128.52 mm up to 144.27 mm
- Depth: 3.3 mm up to 25.4 mm
Additional information:
Devices shown are not included in the delivery.
Only the RAM-B-101B2-TAB12U set is supplied.
| Ball Size: | B-Kugel (1 Zoll bis 0.9 kg) |
|---|---|
| Hersteller: | National Products Inc.- 8410 Dallas Avenue South, Seattle, WA 98108, USA, www.rammount.com |
| Hole Pattern: | AMPS 4-Loch |
| Importer: | RAM Mounts Germany GmbH, Alexander-Meißner-Str. 42, 12526 Berlin, www.rammounts.de, Telephone: 030-917471-70 |
| Mounting: | Schrauben |
| Responsible: | GF Kostja Dümke, info@rammounts.de, 030-917471-70 |
| Warnhinweis: | Plastiktüten von Kindern fernhalten - Erstickungsgefahr! Keep plastic bags away from children – danger of suffocation! |
| EAN: | 793442801969 |
Components
RAM-HOL-TAB12U
(410626)
Available, delivery time: appr. 1-2 Working days
RAM-B-101U-225B2
(410739)
Available, delivery time: appr. 1-2 Working days
