RAM Mounts Assembly Kit - B-Size (1") - Base with 3/8"-16 Threaded Stud - Medium Double Socket Arm (ca. 94.74 mm) - Round Base Plate (AMPS)
€58.95
Available, delivery time: 1-2 Working days

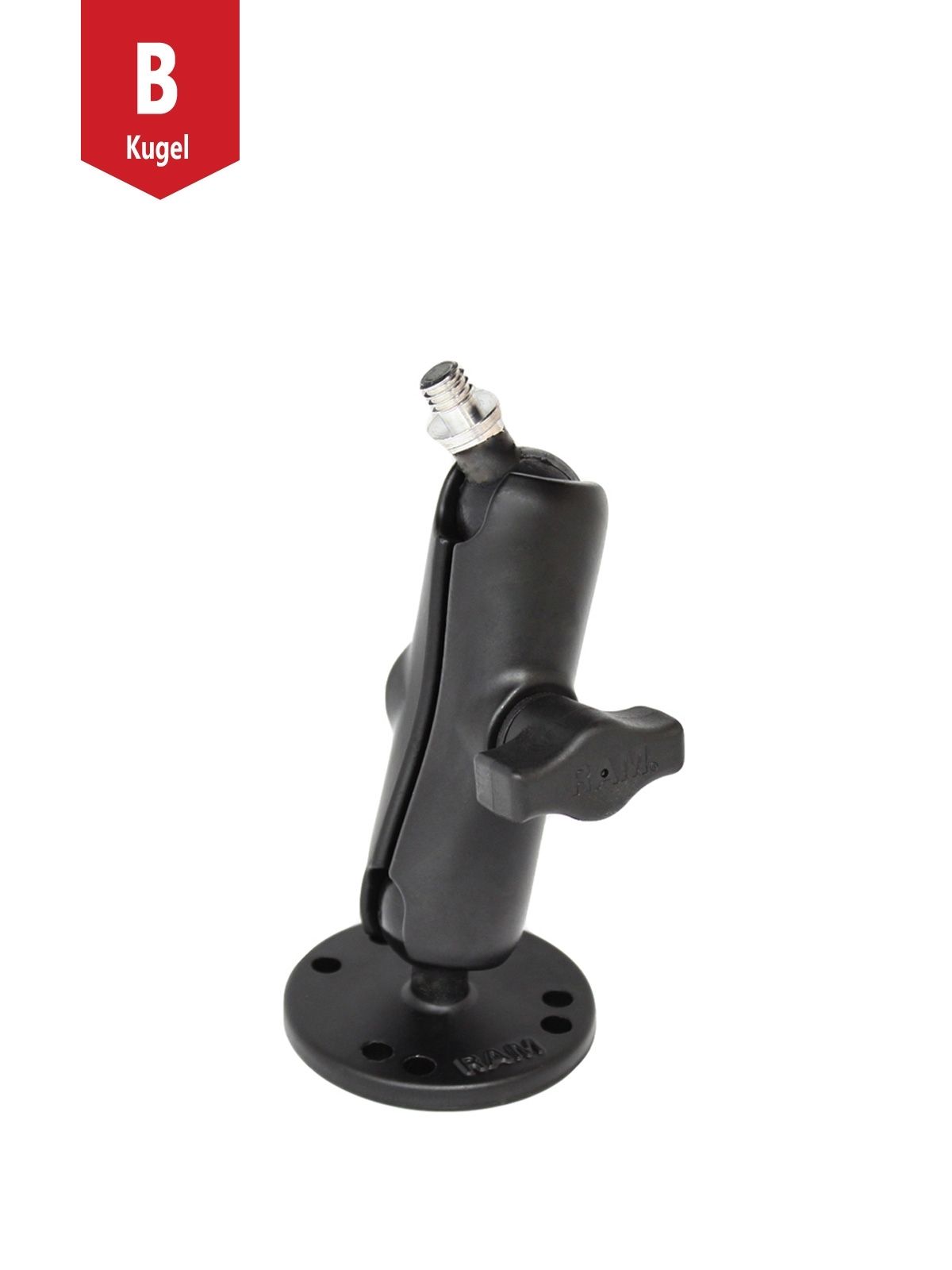

The RAM Mounts RAM-B-101-236U Assembly Kit consists of a ball base with 3/8“-16 threaded stud, a medium double socket arm and a round base plate with an AMPS hole pattern.
It can be mounted flexibly and securely on almost any vertical or horizontal surface.
Thanks to the ball-and-socket system, the mount can be adjusted flexibly, providing perfect viewing and operating angles.
The robust construction made of powder-coated aluminum ensures long-lasting durability even under tough conditions.
With a load capacity of up to 0.91 kg, the set is ideal for a wide range of applications.
Product features RAM Mounts RAM-B-101-236U:
- Material: Powder-coated aluminium
- Ball Diameter: 25.4 mm (1“ - B-Size Ball)
- Base Ball Thread: 3/8"-16 thread
- Base Plate Dimensions: 63.5 mm Diameter (4-Hole AMPS & 3-Hole 120-Degree)
- Double Socket Arm Dimensions: ca. 94.74 mm Overall Length - 76.2 mm Socket-To-Socket
- Weight capacity for standard use up to 0.91 kg
- Weight capacity for heavy-duty use 0.45 kg
- Weight: ca. 191 g
Additional information:
Devices shown are not included in the delivery.
Only the RAM-B-101-236U set is supplied.
| Ball Size: | B-Kugel (1 Zoll bis 0.9 kg) |
|---|---|
| Hersteller: | National Products Inc.- 8410 Dallas Avenue South, Seattle, WA 98108, USA, www.rammount.com |
| Hole Pattern: | AMPS 4-Loch |
| Importer: | RAM Mounts Germany GmbH, Alexander-Meißner-Str. 42, 12526 Berlin, www.rammounts.de, Telephone: 030-917471-70 |
| Mounting: | Schrauben |
| Responsible: | GF Kostja Dümke, info@rammounts.de, 030-917471-70 |
| Thread: | 3/8 Zoll-16 |
| Warnhinweis: | Plastiktüten von Kindern fernhalten - Erstickungsgefahr! Keep plastic bags away from children – danger of suffocation! |
| EAN: | 793442907678 |
