RAM Mounts Tough-Charge X-Grip Halteklammer für Smartphones mit Ladefunktion - B-Kugel (1 Zoll), QI kompatibel, spritzwassergeschützt, USB-A, inkl. Diamond-Basisplatte (Trapez)

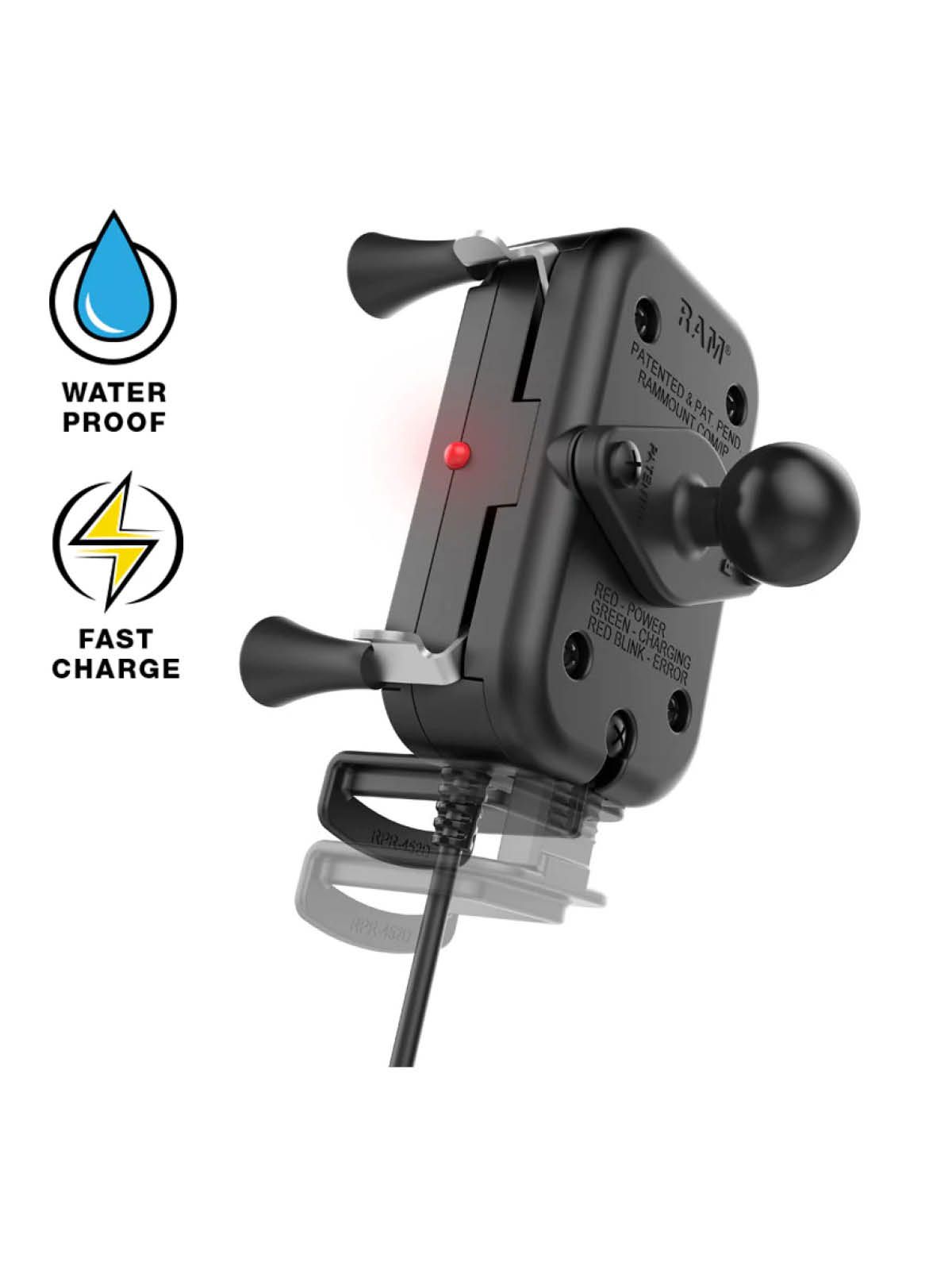

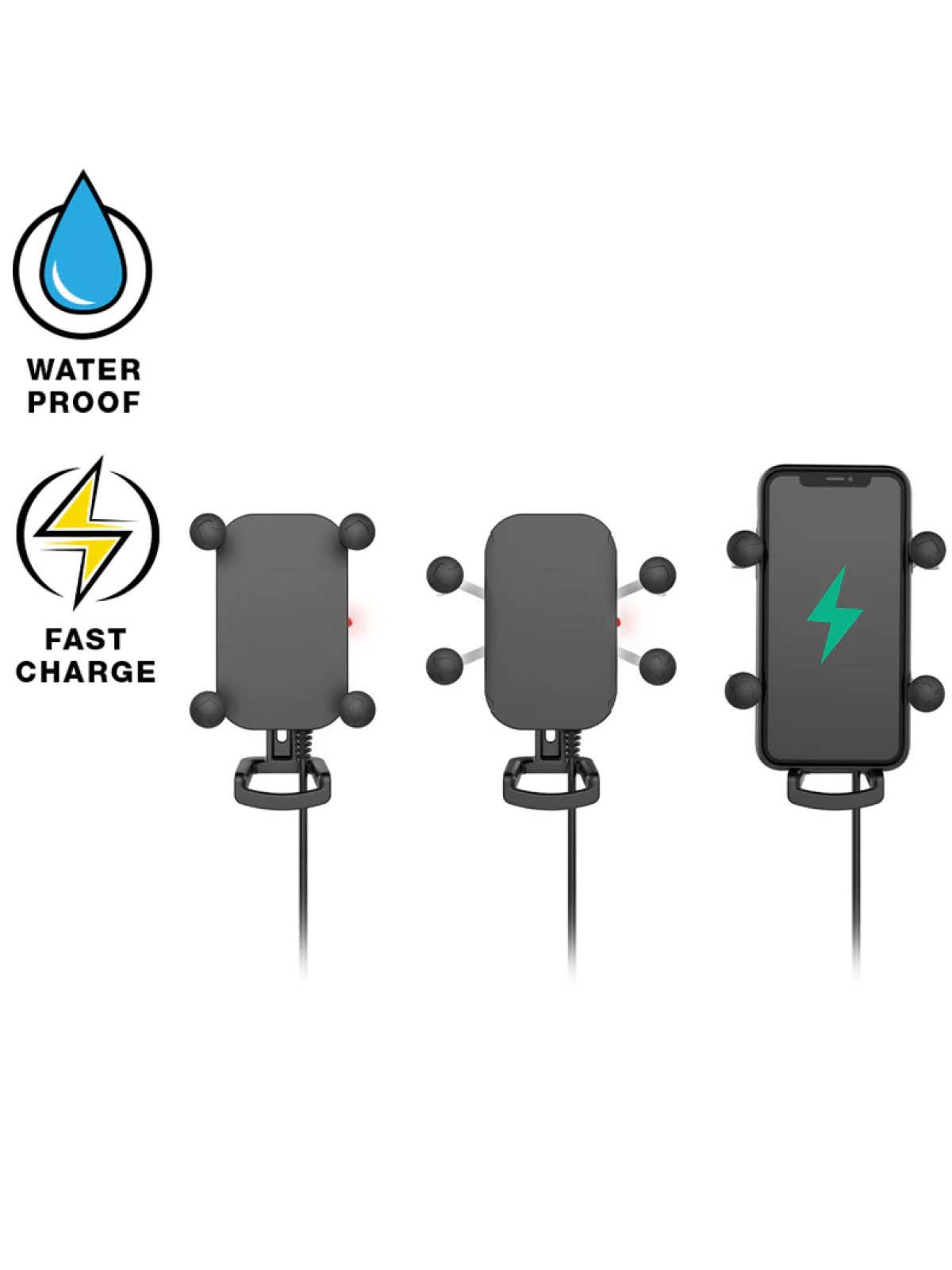

The RAM® Tough-Charge™ with X-Grip® Technology is the world's first patented, universal waterproof wireless charging cradle for phones. Designed with spring-loaded RAM® X-Grip® Technology, this cradle features an 'X' design that expands and contracts to secure nearly any phone while taking advantage of Qi compatible wireless phone charging. All four arms feature rubber-coated caps that hold your phone firmly in place, and the open design keeps buttons and switches accessible on the sides of phones. To insert your device, simply squeeze the arms on one side of the cradle and place your phone inside before releasing the arms. This Qi compatible wireless charging cradle ensures your compatible phone charges no matter what position it’s placed at. For added security and peace of mind, a device tether is included that’s recommended for outdoor applications. In addition, a support leg can be adjusted to the ideal position or removed altogether. This RAM® Tough-Charge™ with X-Grip® Technology wireless charging kit for vehicles includes a B size diamond base featuring a 1” rubber ball – perfect for attaching to your choice of B size RAM® double socket arm. The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable.

Holder dimensions: Width Range 2.375" - 3.25", Depth Range 0.875" max.

Ball size: B Size (1")

Weight capacity: Standard Use 2 lbs, Heavy-Duty Use 1 lb

Materials: High strength composite, Stainless steel

Power specifications

Input Power: 5V-2A, 9V-1.67A

Output: 15 W

Conversion Efficiency: 85% Max

Maximum Case Thickness: 6 mm

Working Frequency: 110-205 KHZ

Product Standard: WPC v.1.2.4

Qi Compatible

Compatible with QC2.0/QC3.0 power supplies

Input connector: USB Type-A Male

Input cable length: approx. 50 cm with optional 1,2 m extension cable

Operating temperature: 0°C to +37.7°C

Compliance: Over Voltage Protection, Short Circuit Protection, Reverse Polarity Protection, RoHS Compliance, WEEE Compliance, SAE J-1113-5 Load Dump (Transient Voltage),

Moisture Resistant

Certifications: CE, KC, e-Mark, RCM, FCC

Additional Information: IMPORTANT - For open cockpit applications (i.e. motorcycles, ATVs, boats, etc.) apply silicone grease to the USB Type-A male & female connector to protect the connections and prevent corrosion. Failure to do so will void warranty.

Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras.

Size of case may affect compatibility. Not compatible with phone cases containing metal. This holder will not charge phones that do not have built-in wireless charging capabilities, such as the Apple iPhone 7 or Samsung Galaxy S5.

Apple iPhone 12 and iPhone 13 products support a new and proprietary wireless charging standard not supported in this product.
