RAM Mounts GDS EZ-Roll'r Halteschale für Zebra ET40 & ET45 (10") Tablets in IntelliSkin Schutzhülle - USB-C & USB-A-Anschluss

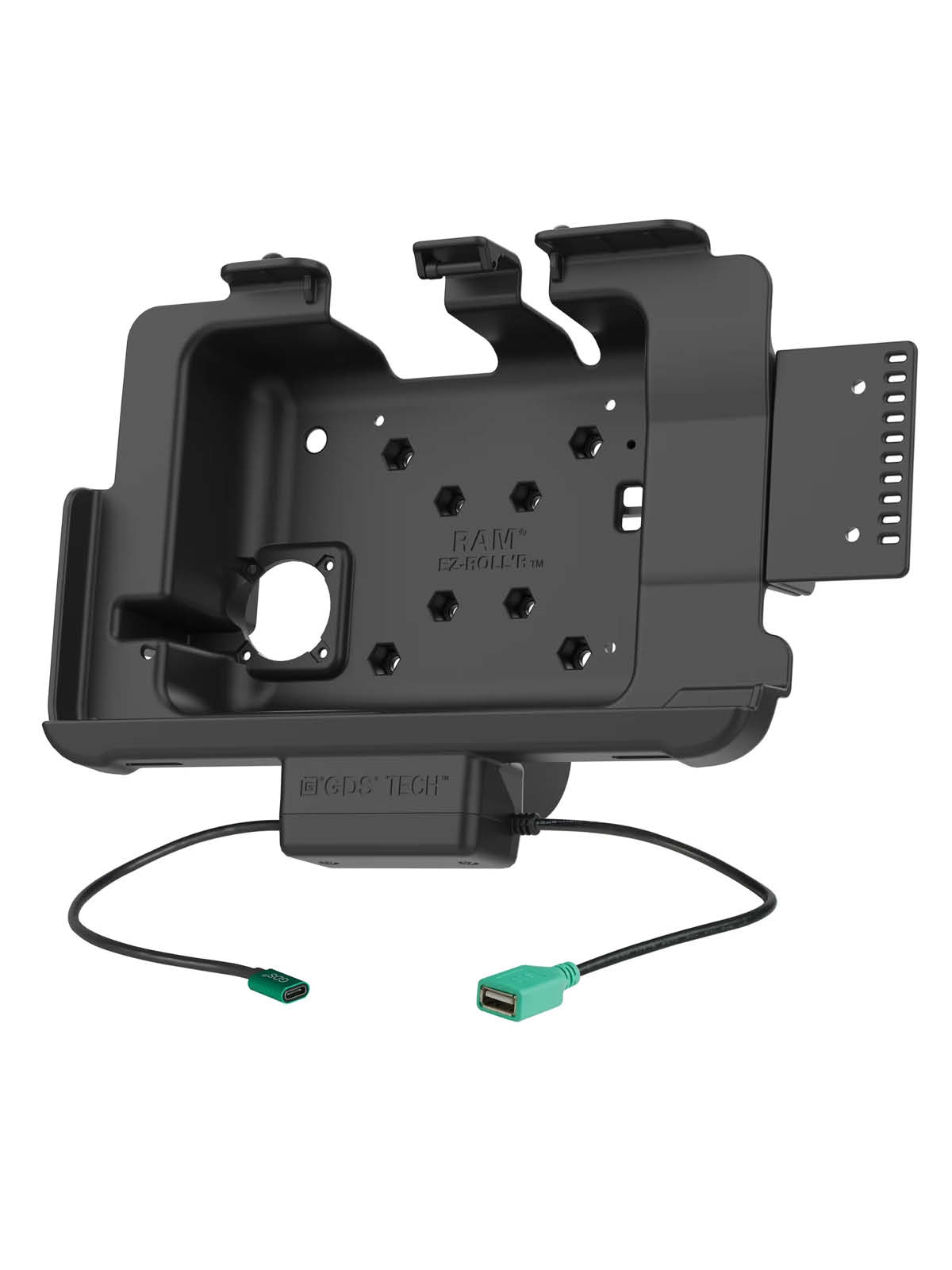

This RAM Mounts GDS EZ-Roll‘r holder is suitable for Zebra ET4x 10“ series with IntelliSkin Next Generation protective sleeve.
The holder is powered by a USB-C port and charges the device in the dock while peripheral support is provided by the built-in USB Type-A cable.
To insert the device, place the bottom of the device in the cradle and press it into the cradle until it clicks into position.
The cut-outs on the buttons and ports allow you to continue using them without any problems.
The cradle also allows the tablet's scanning function to continue to be used because of the cutout at the back.
Tablet accessories such as PowerPack batteries can also be stored inside.

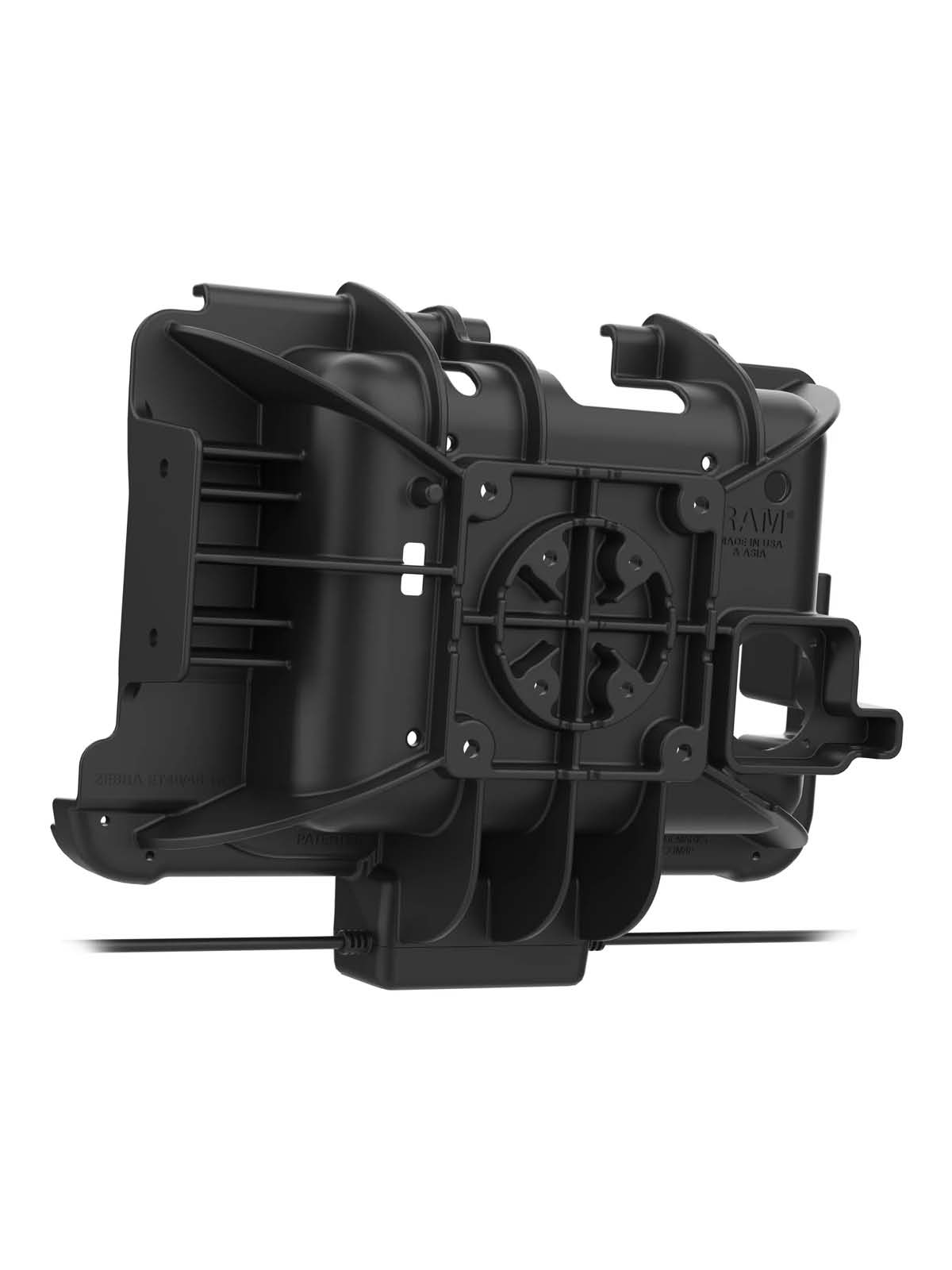

The back of the device holder is prepared to support a VESA 75x75 mm or round ball base (not included).
Product features RAM Mounts RAM-GDS-DOCK-ZE21PDU:
- Compatible with PowerPack batterie
- Easy insertion and removal
- Additional mounting plate for attaching additional devices or accessories
- Can only be used with IntelliSkin Next Generation protective sleeve
- Input Connector: USB-C
- Power Output: 60W
- Output Voltage: 5-20V @ 3A
- Output Connector: USB-A 2.0 (Peripheral output - 500mAh)
- Transfer Speed: 12Mbps
- Input Cable Length: ca. 21 cm
- Output Cable Length: ca. 21 cm
- Certifications: RoHS, WEEE, CE & UKCA
Additional information:
To use the holder you need the RAM-GDS-SKIN-ZE21C-NG protective sleeve.
Devices shown are not included in the delivery.
Only the RAM-GDS-DOCK-ZE21PDU holder is supplied.
| Hole Pattern: | AMPS 4-Loch & VESA 75x75 |
|---|---|
| Manufacturer: | Zebra |
| Mounting: | Schrauben |
| Zebra Rugged PC: | ET4x 10 Zoll |
| EAN: | 793442923869 |
Compatible
RAM-101U-2461
(410338)
RAM-101U-B-2461
(580044)
RAM-D-254-C-235U
(582212)
RAM-D-2461U-C-247-4
(585940)
Compatible Base
RAM-2461U
(410687)
RAM-202U
(410074)
RAM-D-2461U
(410584)
RAM-D-202U
(410307)
Compatible Arms
RAM-201U-B
(410903)
RAM-201U
(410747)
RAM-201U-D
(410648)
RAM-D-201U-C
(410582)
RAM-D-201U
(410306)
RAM-D-201U-E
(410432)
Options
RAM-GDS-SKIN-ZE21C-NG
(410614)
RAM-GDS-CHARGE-V3C-2U
(586460)
RAM-DOCK-HEATER1-DU
(411071)
RAM-VENT1-RND-50U
(586401)
RAM-VENT1-RCT-50U
(586384)
