RAM Mounts Quick-Draw Aufbau-Set Halterung für Zebra TC8000 & TC8300 - Schraubklemme (bis 101,6 mm) - Mittlerer Verbindungsarm (ca. 145 mm Länge) - Runde Basisplatte (C-Kugel - 1,5 Zoll - AMPS)
C-Kugel

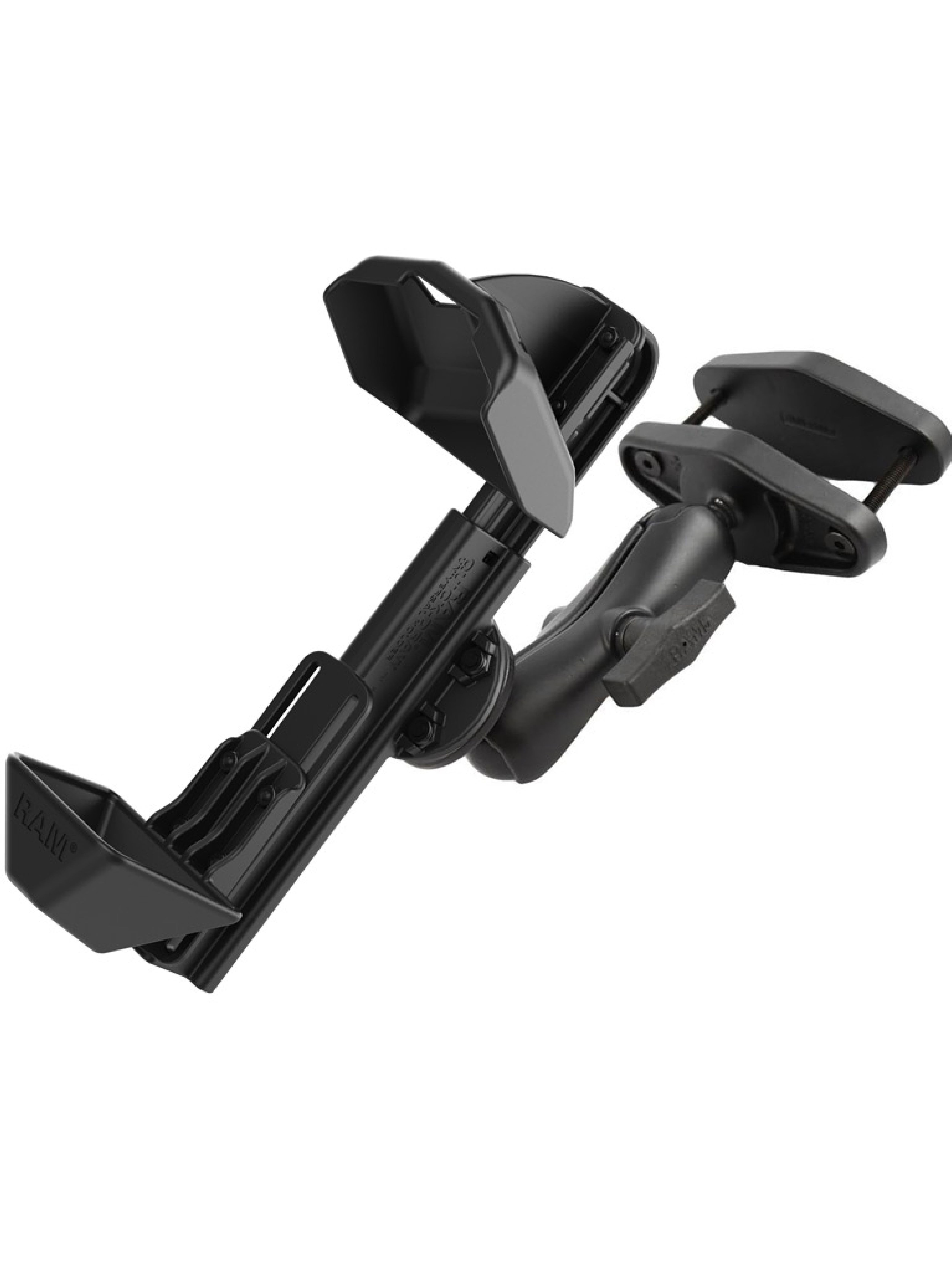

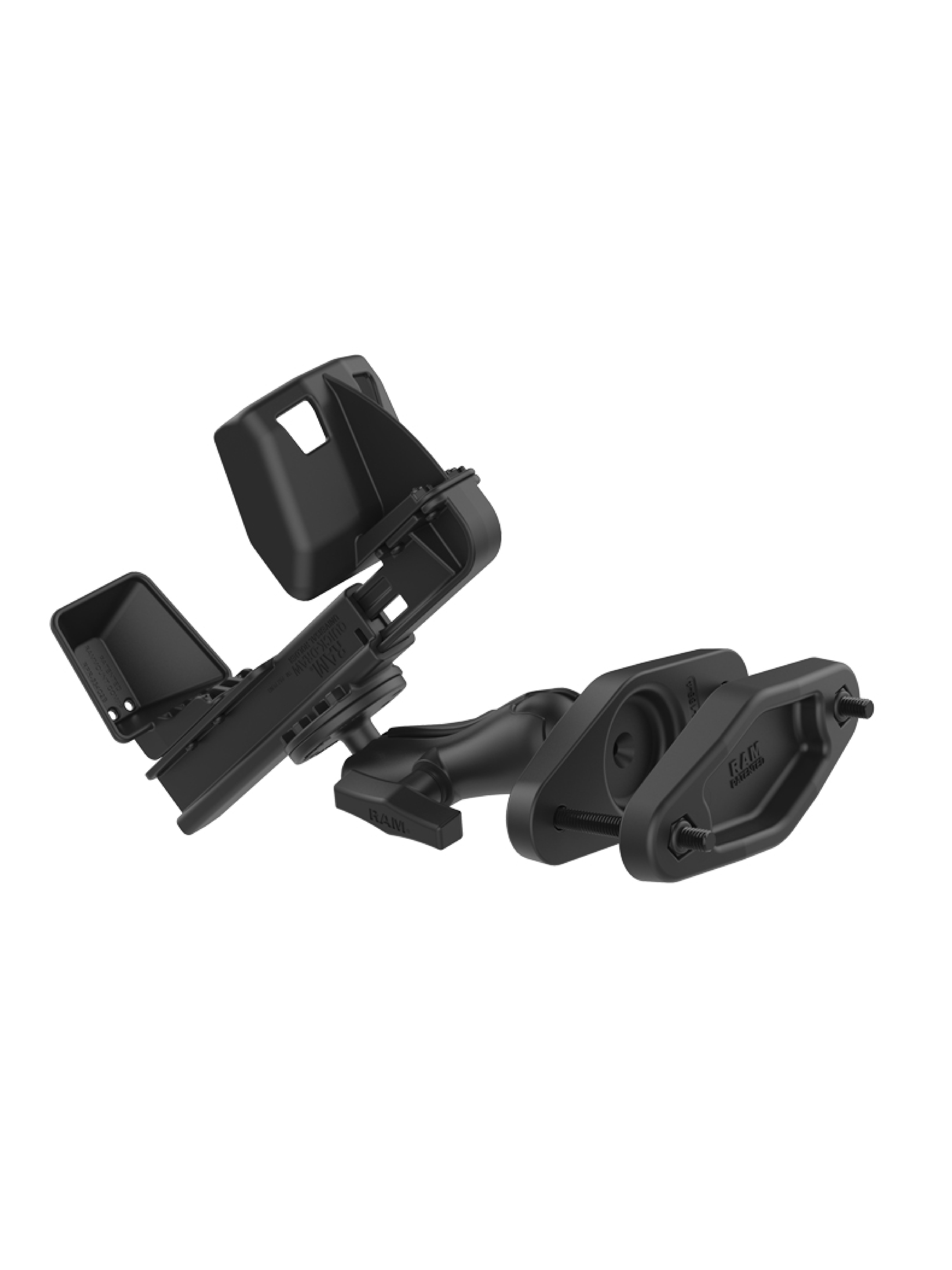

The RAM Mounts Quick-Draw mounting set is compatible with the Zebra TC8000 & TC8300.

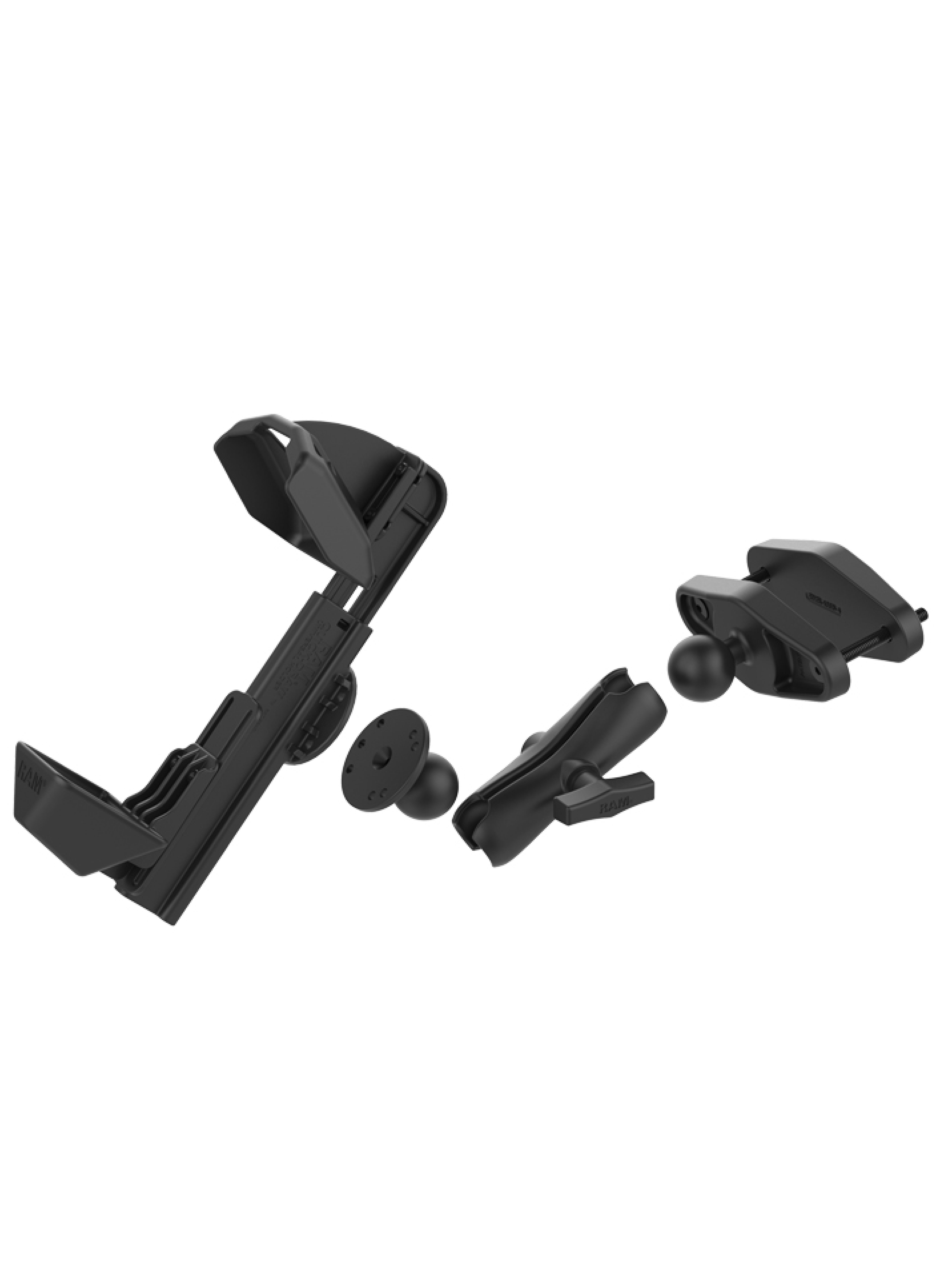

The set includes a Square Post Clamp, a medium-length connecting arm (ca. 145 mm in length) for C-size balls (1.5“), and a round base plate with a diameter of 63,5 mm (2.5“) featuring the AMPS 4-hole pattern.
To insert the device, the upper part of the holder is pushed upwards, and the compatible device is placed inside.
Thanks to the spring-loaded design, the device sits firmly and securely in the holder.
This mount provides a secure and adjustable solution for mounting Zebra TC8000 and TC8300 devices in various work environments.
Product features RAM Mounts RAM-101-247-4-ZE9U:
- Spring-loaded design for easy insertion and removal
· Clamp Range: max. 101,6 mm width (4“)
· Connecting Arm:
Total Length: ca. 145 mm (5.69“)
Socket-To-Socket Length: ca. 118,36 mm (4.66“)
· Ball Diameter: 38,1 mm (1.5“ - C-Ball)
· Weight: ca. 1,16 kg
Additional information:
Devices shown are not included in the delivery.
Only the RAM-101-247-4-ZE9U Set is supplied.
| Ball Size: | C-Kugel (1.5 Zoll bis 1.8 kg) |
|---|---|
| Hersteller: | National Products Inc.- 8410 Dallas Avenue South, Seattle, WA 98108, USA, www.rammount.com |
| Manufacturer: | Zebra |
| Mounting: | Klemme |
| Verantwortlich: | GF Kostja Dümke, info@rammounts.de, 030-917471-0 |
| Zebra Handheld PC: | TC8000/8300 |
| Importeur: | RAM Mounts Germany GmbH, Alexander-Meißner-Str. 42, 12526 Berlin, www.rammounts.de, Telefon: 030-917470-70 |
| Warnhinweis: | Plastiktüten von Kindern fernhalten - Erstickungsgefahr! |
| EAN: | 793442012846 |
Components
RAM-HOL-ZE9U
(585877)
RAM-101U-247-4
(580038)
