RAM Mounts GDS Uni-Conn Fahrzeug-Kit für Samsung Active5 - C-Kugel (1,5 Zoll), USB-C/-A

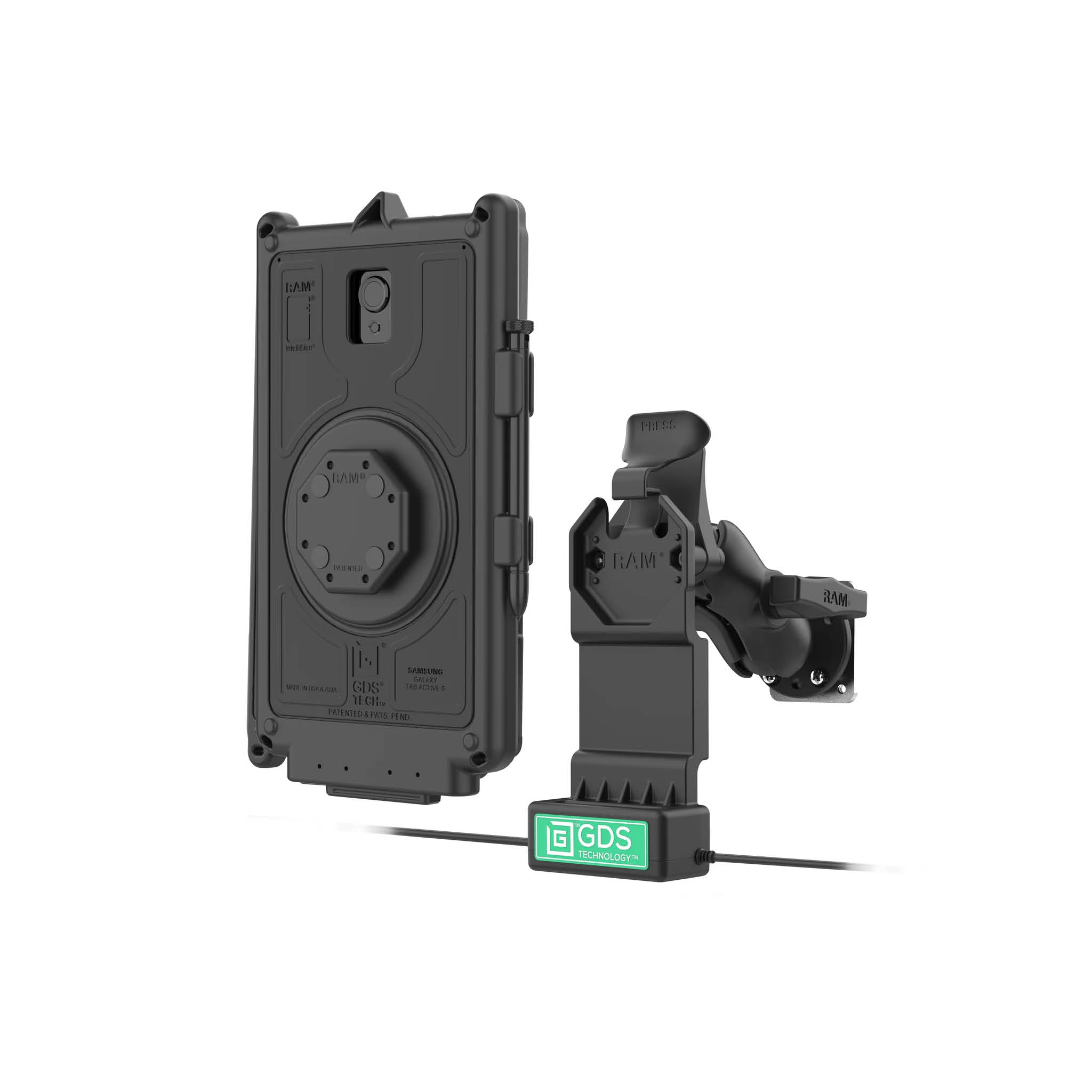

The GDS® Uni-Conn™ Vehicle Bundle + USB-C & USB-A for Samsung Tab Active5 (RAM-GDS-U1-SAM90-KIT5) is a comprehensive kit of everything needed to deploy the Tab Active5 in your fleet. It contains one GDS® Uni-Conn™ dock, Uni-Conn™ adapter, IntelliSkin® for the Tab Active5, and short double ball mount with backing plate.

The dock uses a USB Type-C female power connector while the USB-A pigtail allows you to connect one input device such as a mouse, keyboard, scanner gun, & more. The integrated pogo pins connect to the IntelliSkin®-wrapped device, providing power while docked. This dock features an easy docking and undocking process, simply place the IntelliSkin®-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a lever releases the tablet.

Warranty is void if the lever stop is not installed. Always Protected. Always Connected.® One Dock to Connect Them All™

Features

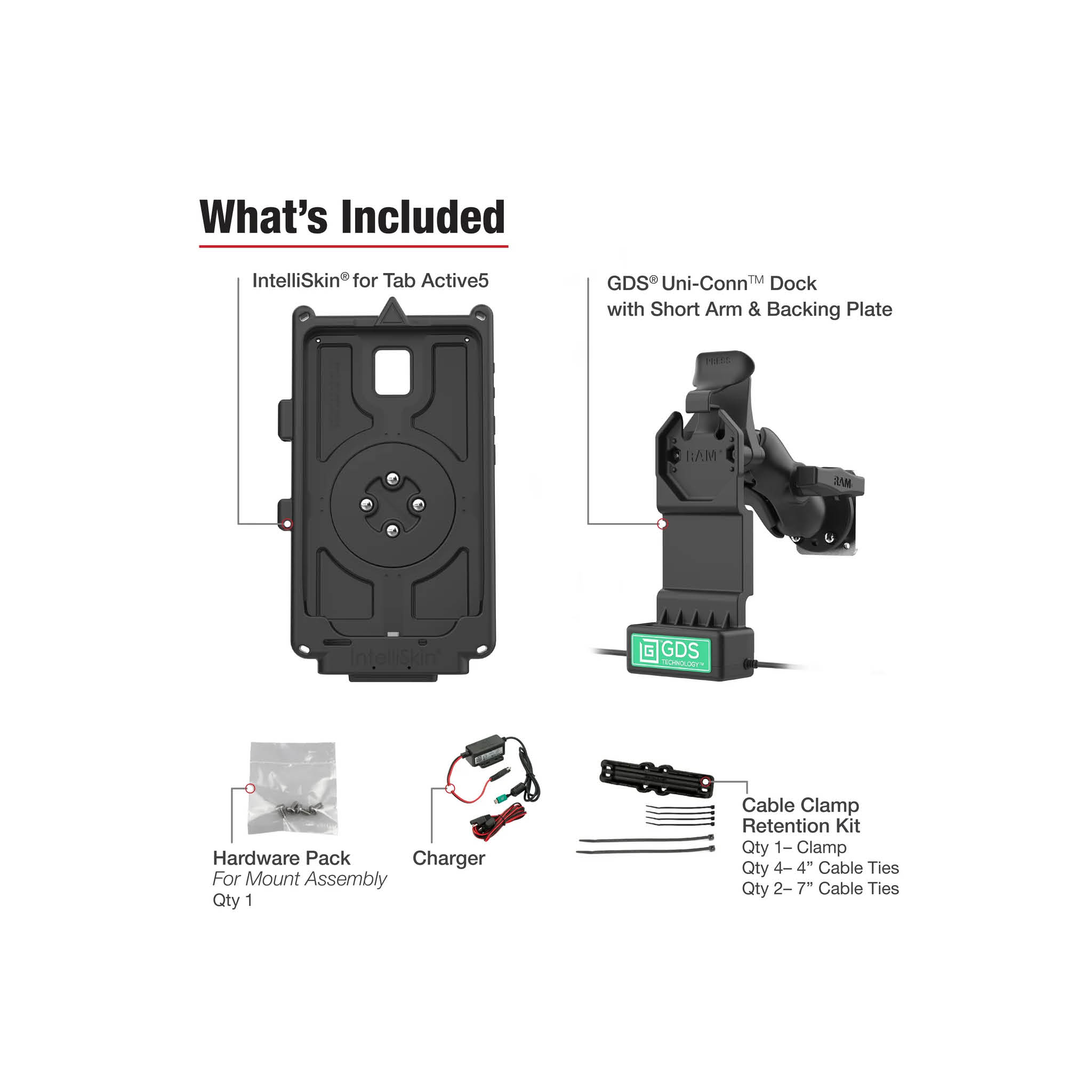

• Bundle includes the GDS® Uni-Conn™ dock, Uni-Conn adapter, IntelliSkin® Next Gen for Samsung Tab Active5, C size double ball mount with short arm, backing plate adapter, and cable clamp
• Dock features GDS® Technology™ for charging and data sync capabilities; one USB-C port connects to power and one USB-C port connects one input device
• Uni-Conn™ dock features an easy device insertion and removal

Socket to socket length - 2.5"

Hole pattern - 4-Hole AMPS 1.181" x 1.496", 3-Hole 120-Degree 1.812" Diameter

Ball size - C Size (1.5")

Materials - Steel, Marine-grade aluminum, High strength composite

Output voltage - 5-12 V @ 3A max.

Power Output - 15 W

Input connector - USB Type-C (Power In)

Input cable length - 215 mm

Output connector - 1x USB Type-C, 1x USB Type-A (Peripheral)

Output cable length - 215 mm

Peripheral Output - 900 mAh (per port)
