RAM Mounts Aufbau-Set - B-Kugel (1 Zoll) - 2x Rechteckige Basisplatten (25,4 x 63,5 mm Lochmuster) - Mittlerer Verbindungsarm (ca. 94,74 mm)

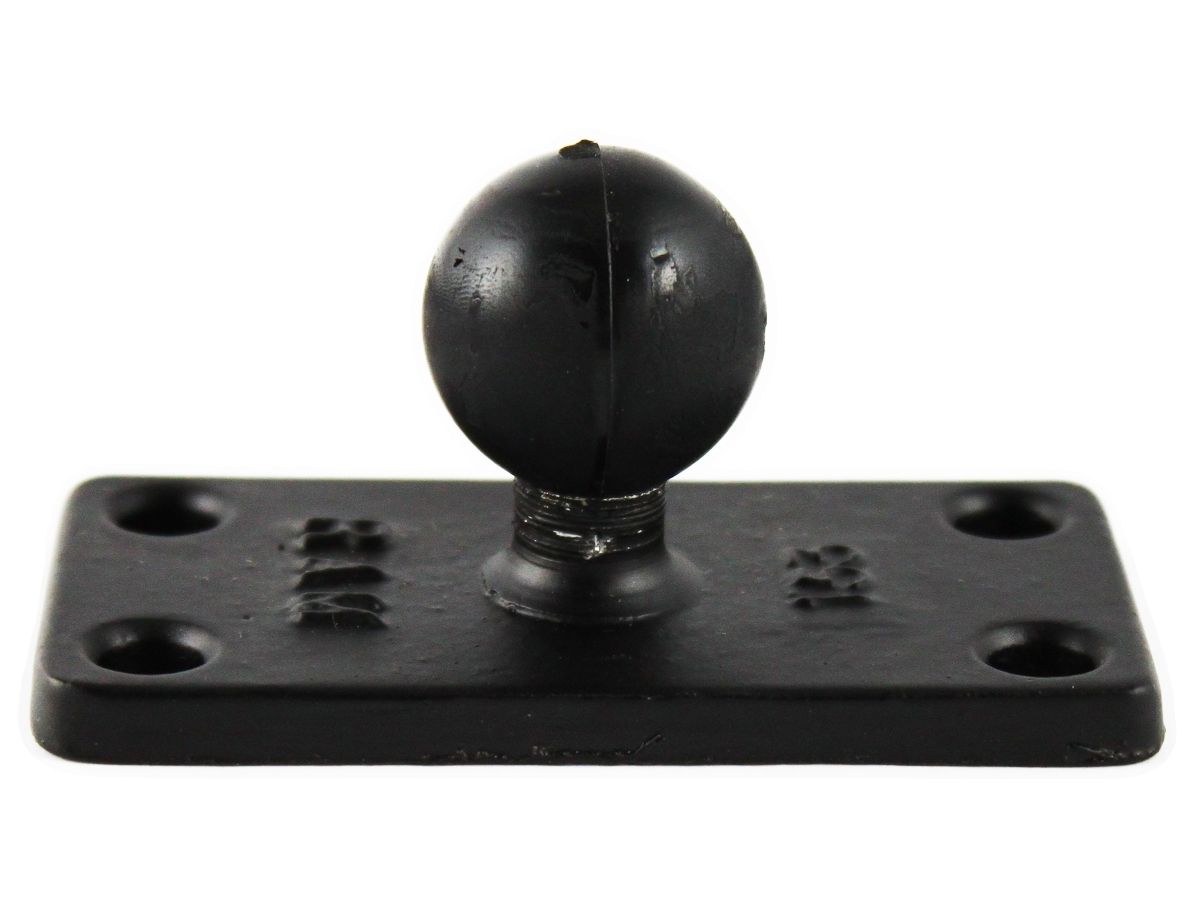

The RAM Mounts RAM-B-102U-153 Assembly Kit consists of a medium double socket arm (1" B-size) and two rectangular base plates (1" B-size ball) with 25.4 x 63.5 mm Hole Pattern.
Thanks to the AMPS hole pattern, the set is compatible with numerous RAM Mounts device cradles.
It can be mounted flexibly and securely on almost any vertical or horizontal surface.

Thanks to the ball-and-socket system, the mount can be adjusted flexibly, providing perfect viewing and operating angles.
The robust construction made of powder-coated aluminum ensures long-lasting durability even under tough conditions.
With a load capacity of up to 0.91 kg, the set is ideal for a wide variety of applications.
Perfect for securely mounting cradles, tablets, monitors, GPS devices, or radios.

Product features RAM Mounts RAM-B-102U-153:

• Material: Powder-coated aluminium
• Overall Dimension: ca. 127 mm
• Ball Diameter: 2.54 cm (1“ - B-Size Ball)
• Base Plate Dimensions: ca. 38.1 mm x 76.2 mm (25.4 x 63.5 mm Hole Pattern)
• Double Socket Arm Dimensions: ca. 94.74 mm Overall Length - 76.2 mm Socket-To-Socket
• Weight capacity for standard use up to 0.91 kg
• Weight capacity for heavy-duty use 0.45 kg
• Weight: ca. 254 g

Additional information:

Devices shown are not included in the delivery.
Only the RAM-B-102U-153 set is supplied.
